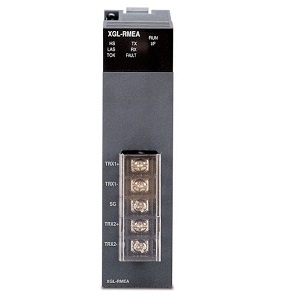

LS PLC Communication Module XGL-RMEA

LS PLC Communication Module XGL-RMEA

• Extended Product Type : PLC

• Product ID : XGL-RMEA

• LS Type Designation : PLC

Specification of LS XGL-RMEA

• Transmission speed : 1Mbps
• Encoding : Manchester Biphase-L
• Transmission distance (Per segment) : Max. 750m
• Transmission distance (When using repeater) : Max. 750m * (6 repeater +1) = 5.25Km
• Transmission cable : Twisted pair shield cable
• Max. number of connection stations : Master + Slave = 64 stations (with repeater), 1 segment=32 stations (with maste)
• Max. size of protocol : 256 bytes
• Current consumption (mA) : 410
• Weight (kg) : 0.12
