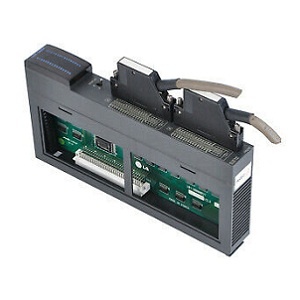

LS PLC Input Module G3I-D28A

LS PLC Input Module G3I-D28A

• Extended Product Type : PLC

• Product ID : G3I-D28A

• LS Type Designation : PLC

Specification of LS G3I-D28A

• Number of input points : 64 points
• Rated input voltage : 12/24 VDC
• Rated input current : 3/7 mA
• Operating voltage range : 10.2 to 26.4 VDC (ripple: less than 5%)
• Common method : 32 points/1 COM(common pins: 17,18,19,20,37,38,39,40)
• Internal current consumption : 120 mA
• External connections : Two 40-pin D-sub connectors
• Weight : 0.46 kg
