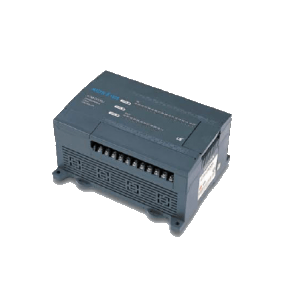

LS PLC K7M-DRT40U

LS PLC K7M-DRT40U

• Extended Product Type : PLC

• Product ID : K7M-DRT40U

• LS Type Designation : PLC

Specification of LS K7M-DRT40U

• Input Specification
• Number of input points : 24
• Rated input voltage : DC 24V
• Rated input current : 7mA (Standard type: P0~P3 [9mA], Economic type: P0~P1 [9mA])
• Operating voltage range : DC20.4V~28.8V (Ripple rate <5%
• Output Specification
• DT-type output point : 16
• DRT-type Tr. output point : 4
• DRT-type relay output point : 12
• Rated load voltage : DC12V/24V
• Operation load voltage : DC10.2~26.4V
