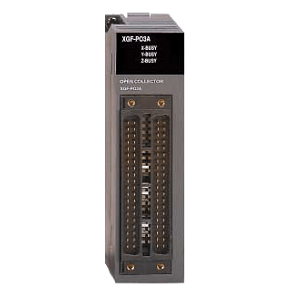

LS PLC Position Module XGF-PD3A

LS PLC Position Module XGF-PD3A

• Extended Product Type : PLC

• Product ID : XGF-PD3A

• LS Type Designation : PLC

Specification of LS XGF-PD3A

• Number of axis : 3 axis
• Control method : Position control, speed control, speed/position control, position/speed control
• Max. output pulse : 1 Mpps
• Max. connection distance : 10 m
• Connection connector : 40 Pin connector
• Size of cable :  AWG #24
• Occupied points of I/O : 64 points (Fixed type), 16 points (Variable type)
• Current consumption (mA) : 860
• Weight : 0.135 kg
