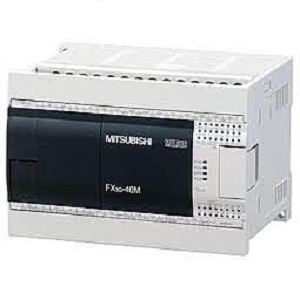

Mitsubishi FX3G-40MR/ES-K PLC CPU I/O Module FX3G40MRESK

• Extended Product Type: FX-series
• Product ID: FX3G-40MR/ES-K
• Mitsubishi Type Designation: FX-series

Description of Mitsubishi FX3G-40MR/ES-K CPU I/O Module

Mitsubishi FX3G-40MR/ES-K Standard Programmable Logic Controller (PLC) CPU unit with built-in I/Os – (MELSEC-F (FX) Series FX3G) – 40I/O [24DI (24 x digital inputs (24Vdc; Sink/Source)) + 16DO (16 x digital outputs (Rly NO contacts; 2A / 240Vac or 30Vdc; 10ms response))] – 32Ksteps (EEPROM; Program) memory capacity – connection capacity 128 x I/O points – with USB connector + screw-clamp term. connections (I.O’s) – with RS-422 communication capability – Supply voltage 100Vac-240Vac (120Vac / 208Vac / 220Vac / 230Vac) – DIN rail mounting (130mm width) – equivalent to FX3G40MRESK

Specification of Mitsubishi FX3G-40MR/ES-K PLC CPU Base Unit

• Primary brand: Mitsubishi Electric
• Main function: CPU unit
• Product series / family name: MELSEC-F (FX) Series
• Sub-range name: FX3G
• Functions: Standard Programmable Logic Controller (PLC) CPU unit
  • Program execution type — Cyclical / Refresh mode processing
• Design: built-in I/Os
• Supply voltage (AC): 100Vac-240Vac (120Vac / 208Vac / 220Vac / 230Vac)
• Memory capacity: 32Ksteps (EEPROM; Program)
  • 7680 points (Auxiliary relays)
  • 320 points (Timers)
  • 235 points (Counters)
  • 8000 points (Data registers)
  • 24000 points (Extension registers)
• Connection capacity: 128 x I/O points, 256 x I/O points (with CC-Link or AnyWireASLINK)
• Connection type: USB connector, screw-clamp term. connections (I.O’s)
• Communication protocol: RS-422
• Net Width (mm): 130 mm
• Mounting mode: DIN rail
• Digital inputs: 24 x digital inputs (24Vdc; Sink/Source)
• Digital outputs: 16 x digital outputs (Rly NO contacts; 2A / 240Vac or 30Vdc; 10ms response)
• Dimensions: W130mm x H90mm x D86mm
• Ambient air temperature for operation: 0…+55 °C
• Ambient air temperature for storage: -25…+75 °C
• Programming languages: Ladder diagram (LD) / Relay symbol language
  • Structured Ladder / Function Block Diagram (FBD)
  • Structured Text (ST)
  • Sequential Function Chart (SFC)
• Processing time: 0.21μs / instruction (contact instruction) – 0.000021 ms
  • 0.52μs / instruction (MOV instruction) – 0.00052 ms
  • 0.42μs / instruction (Extension mode – contact instruction) – 0.00042 ms
  • 1.29μs / instruction (Extension mode – MOV instruction) – 0.00129 ms
• Power consumption: 37 W
• Manufacturer product status: Commercialized
• Equivalent to: FX3G40MRESK
• Compliant with standard(s): CE (EMC directive), CE (LVD – Low Voltage Directive), UL / cUL, KC, ABS approval, DNV approval, LR approval, GL approval, BV approval, RINA approval, NK approval
