Description

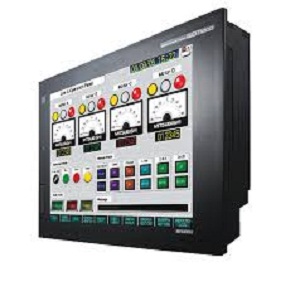

Mitsubishi GT1685M-STBD Graphic Operation Panel GOT 1000 GT1685MSTBD

• Extended Product Type: HMI
• Product ID: GT1685M-STBD  / GT1685MSTBD
• Mitsubishi Type Designation:  HMI

• Display device type: TFT color (High intensity, Wide angle view)
• Panel color type: Black
• Power type: 24VDC
• Input Power Supply Voltage: 24VDC (+25%, -20%)
• Power Consumption: 40W or less
• Power Consumption W/ Backlight Off: 26W or less
• Inrush Current: 12A or less (55ms, at max. load)
• Permissible Instant. Failure Time: Within 10ms
• Noise Resistance: Noise voltage 500Vp-p, noise width 1µs by noise simulator with noise frequency 25 to 60Hz

Specifications of Mitsubishi GT1685M-STBD Graphic Operation Panel

• Type: TOUCH PANEL
• Power Supply (V): 24
• Current Type: DC
• Display: TFT
• Resolution (Pixels): 800X600
• Dimension(W x H x D in mm): 316 x 242 x 56
• Weight (kg): 2,7
