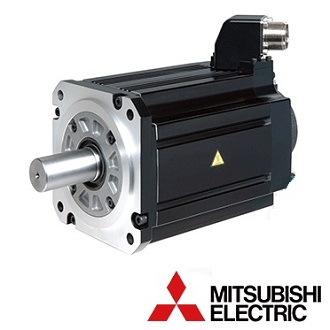

Mitsubishi HG-JR153 Rotary AC Servo Motor 1.5kW HGJR153

• Extended Product Type: Motors
• Product ID: HG-JR153
• Mitsubishi Type Designation: Motors

Description of Mitsubishi HG-JR153 Rotary AC Servo Motor

Mitsubishi Low-inertia rotary AC servo motor – (MELSERVO J4 series HG-JR) – Rated power 1500W / 1.5kW – Rated torque 4.8Nm / 3.54ft.lbf – Rated rotational speed 3000rpm – with Absolute/incremental encoder output (22-bit / 4194304pulses/revolution resolution) – IP67 – with Natural cooling + Oil seal – rated for 0-40°C ambient

Specifications of Mitsubishi HG-JR153 Rotary AC Servo Motor 1.5kW

• Series name: MELSERVO-J4 series
• Voltage class: 200V
• Power supply capacity * 1 [KVA]: 2.5
• Rated output [KW]: 7
• Rated current [A]: 9.4
• Maximum current [A]: 29
