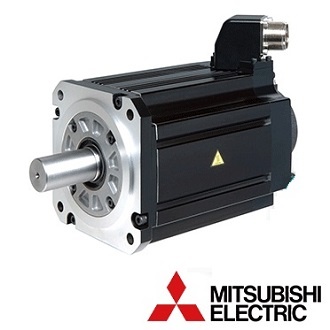

Mitsubishi HG-JR73K Rotary AC Servo Motor 0.75kW HGJR73K

• Extended Product Type: Motors
• Product ID: HG-JR73K
• Mitsubishi Type Designation: Motors

Description of Mitsubishi HG-JR73K Rotary AC Servo Motor

Mitsubishi Low-inertia rotary AC servo motor – Keyway shaft – (MELSERVO J4 series HG-JR) – Rated power 750W / 0.75kW – Rated torque 2.4Nm / 1.77ft.lbf – Rated rotational speed 3000rpm – with Absolute/incremental encoder output (22-bit / 4194304pulses/revolution resolution) – IP67 – with Natural cooling + Oil seal – rated for 0-40°C ambient

Specifications of Mitsubishi HG-JR73K Rotary AC Servo Motor

• Series name: MELSERVO-J4 series
• Voltage class: 200V
• Power supply capacity * 1 [KVA]: 2.5
• Rated output [KW]: 7
• Rated current [A]: 9.4
• Maximum current [A]: 29
