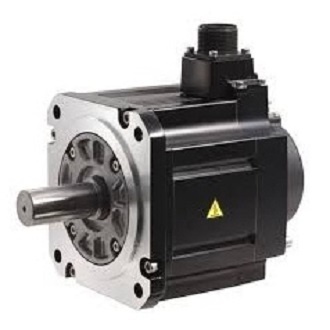

Mitsubishi HG-SN302J Rotary AC Servo Motor 3kw HGSN302J

• Extended Product Type: Motors
• Product ID: HG-SN302J
• Mitsubishi Type Designation: Motors

Description of Mitsubishi HG-SN302J Rotary AC Servo Motor

Mitsubishi Electric Medium-inertia rotary AC servo motor – (MELSERVO JE Series) – Rated power 3000W / 3kW – Rated torque 14.3Nm / 10.55ft.lbf – Rated rotational speed 2000rpm – with Absolute/incremental encoder output (17-bit / 131072pulses/revolution resolution) – IP67 – with Natural cooling + Oil seal – rated for 0-40°C ambient

Specifications of Mitsubishi HG-SN302J Rotary AC Servo Motor 3kw

• Servo motor series: low inertia, small capacity.
• Rated output: 3kw.
• Rated speed: 2000r/min.
• Electromagnetic brake: No.
• Oil seal: have.
• Corresponding servo amplifier: MR-JE-10B/MR-JE-10A.
• Support position control, speed control, torque control, push and press control.
• Position control can use linear, arc interpolation controller, fixed size feed control, target position change and other rich functions.
• Output [kW]: 1.0
• Moment of inertia J [× 10-4 kg•m2]: 11.6
• Mass [kg]: 6.2
