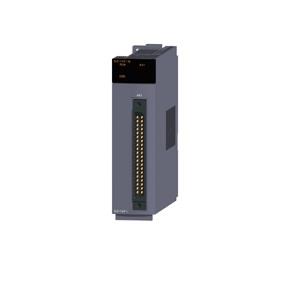

Mitsubishi QD75D1N Positioning Line Driver Output Module

• Extended Product Type: PLC
• Product ID: QD75D1N
• Mitsubishi Type Designation: PLC

Description of Mitsubishi QD75D1N Positioning Output Module

• Positioning unit (differential driver output type) QD75D1N
• Number of control axes : 1 axis
• Interpolation function : None
• control method : PTP (Point To Point) control trajectory control (both linear, circular and helical can be set) Speed ??control speed / position switching control position / speed switching control
• Control unit : mm, inch, degree, pulse
• Positioning data : 600 data / axis
• backup : Parameter, positioning data, block start data can be saved in flash ROM (battery less)
• Positioning Positioning method PTP control : Increment method / absolute method

Specifications of Mitsubishi QD75D1N Positioning Control Modules
