Description

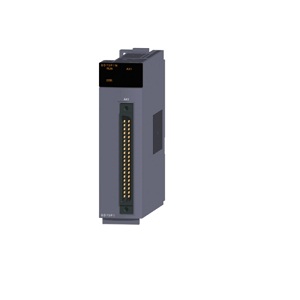

Mitsubishi QD75D4N Line Driver Output Positioning Module 1W4635

• Extended Product Type: PLC
• Product ID: QD75D4N
• Product Code: 1W4635 / X70501
• Mitsubishi Type Designation: PLC

Description of Mitsubishi QD75D4N Output Positioning Module

• Positioning unit (differential driver output type) QD75D4N
• Number of control axes: 4 axes
• Interpolation function: 2 axis, 3 axis, 4 axis linear interpolation 2 axis circular interpolation 3 axis helical interpolation
• control method: PTP (Point To Point) control trajectory control (both linear, circular and helical can be set) Speed ??control speed / position switching control position / speed switching control
• Control unit: mm, inch, degree, pulse
• Positioning data: 600 data / axis
• backup : Parameter, positioning data, block start data can be saved in flash ROM (battery less)
• Positioning method tiga PTP control: Increment method / absolute method
• Speed ??/ position switching control: Increment method / absolute method
• Position / speed switching control: Increment method
• Trajectory control : Increment method / absolute method

Specifications of Mitsubishi QD75D4N Output Positioning Module
