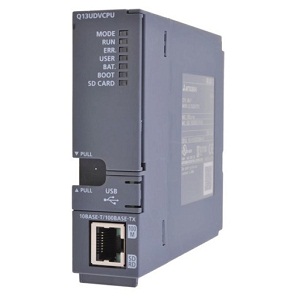

Mitsubishi Q Series Q13UDVCPU Universal Q CPU Module

Mitsubishi Q13UDVCPU-C Universal CPU Module Q13UDVCPUC

$2,900.00

AVAILABILITY: Generally allow 7-10 days to ship

8 in stock

SKU: Q13UDVCPU-C Category: Tag:
Mitsubishi

Description

Mitsubishi Q13UDVCPU-C Universal CPU Module Q13UDVCPUC

  • Extended Product Type: PLC
  • Product ID: Q13UDVCPU-C
  • Mitsubishi Type Designation: PLC

Description of Mitsubishi Q13UDVCPU-C Universal CPU Module

Mitsubishi Q13UDVCPU-C Universal Programmable Logic Controller (PLC) CPU / main unit with conformal coating – (MELSEC-Q Series (QnU)) – 130Ksteps / 520KBytes (Program) memory capacity – connection capacity 4096 x I/O points – with USB connector + RJ45 port (10/100Mbit Ethernet) – with Ethernet communication capability – Supply voltage 5Vdc (from dedicated Q-series P.S.U.) – Backplane / rack mounting – equivalent to Q13UDVCPUC

Specification of Mitsubishi Q Series Q13UDVCPU-C Universal Q CPU Module

  • Primary brand: Mitsubishi Electric
  • Main function: CPU unit
  • Product series / family name: MELSEC-Q Series (QnU)
  • Functions: Universal Programmable Logic Controller (PLC) CPU / main unit
    • I/O control system — Refresh system
    • Program execution type — Stored-program cyclic operation
  • Supply voltage (DC): 5Vdc (from dedicated Q-series P.S.U.)
    • Memory capacity
    • 130Ksteps / 520KBytes (Program)
    • 2048 points (Timers)
    • 1024 points (Counters)
    • 41984 points (Data registers)
    • 28672 points (Internal relays)
    • 8192 points (Latch relays)
    • 8192 points (Link relays)
    • 8192 points (Link register)
    • 2048 points (Annunciator)
    • 2048 points (Edge relays)
    • 2048 points (Link special relays)
    • 2048 points (Link special register)
    • 524288 points (File register)
    • 8192 points (Step relays)
    • 20 points (Index register / standard device register)
    • 10 points (32-bit ZR indexing)
    • 4096 points (Pointer)
    • 256 points (Interrupt pointer)
    • 2048 points (Special relays)
    • 16 points (Function input FX)
    • 16 points (Function input FY)
    • 5 points (Function register FD)
  • Connection capacity: 4096 x I/O points
  • Connection type: USB connector, RJ45 port (10/100Mbit Ethernet)
  • Communication protocol: Ethernet
  • Mounting mode: Backplane / rack
  • Ambient air temperature for operation: 0…+55 °C
  • Ambient air temperature for storage: -25…+75 °C
  • Programming languages: Ladder diagram (LD) / Relay symbol language, Structured Text (ST), Logic symbolic language, Function Block Diagram (FBD), MELSAP3 (SFC), MELSAP-L
  • Processing time: 0.0019μs / instruction (LD instruction) – 0.0000019 ms
    • 0.0039μs / instruction (MOV instruction) – 0.0000039 ms
    • 227μs / instruction (PC MIX value) – 0.227 ms
    • 0.014μs (Floating point addition) – 0.000014 ms
  • Storage type: SD / SDHC memory card, Extended SRAM cassette
  • Refreshing time: (Constant scan) 0.5-2000ms / 0.0005-2 s
A showcase of news and entertainment programs in different Filipino dialects. The following procedure can be used for a simple, tapered and, swept wing. Hotel Esperanza Hotel Esperanza is set in a cul de sac in the historic centre of Florence, just metres from Florence Cathedral and a minute walk from the famous Ponte Vecchio bridge.

Additional information

Weight3 lbs
Dimensions6 × 5 × 8 in
