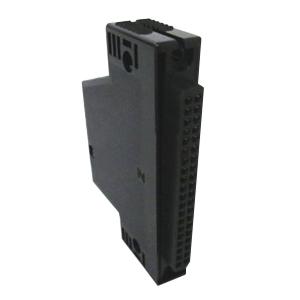

Omron PLC Applicable Connector C500-CE404

Description

Omron PLC Analog Output Unit C500-CE404

• Extended Product Type: C500

• Product ID: C500-CE404

• OMRON Type Designation: C500

• Description: CONN MODULE 32 POS FOR CQ1M

• Long Description: Connector C Series

Features

• Input frequencies to 500 kHz.
• 32-bit counting range.
• Digital variable noise filter provided.
• 5, 12, 24 V line driver inputs available.
• Supports simple, ring, and linear counting modes.
• Supports two external control inputs, and a total of 16 functions can be set: open gate, close gate, preset, reset, capture, stop/capture/reset combinations, reset enable, and more.
• One Unit supports two external outputs and 30 internal outputs with counter value zone comparisons, target comparisons, delays, holds, programmable outputs, and hysteresis settings.
• Pulse rate measurement function and data logging.
• Counter outputs and external control inputs can be used to trigger interrupt tasks in the CPU

International Standards

•The standards are abbreviated as follows: U: UL, U1: UL (Class I Division 2 Products for Hazardous Locations), C: CSA, UC: cULus, UC1: cULus (Class I Division
2 Products for Hazardous Locations), CU: cUL, N: NK, L: Lloyd, and CE: EC Directives.
• Contact your OMRON representative for further details and applicable conditions for these standards.

Specification

• 40-pin Connectors
• FCN-361J040-AU Connector FCN-360C040-J2 Connector Cover Right angle type, included with Unit
