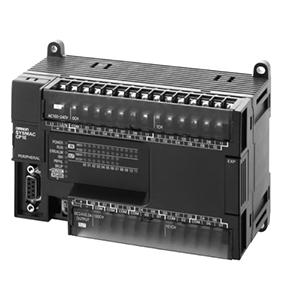

Omron PLC CPU Unit CP1E-N40DR-A

Description

Omron PLC CPU Unit CP1E-N40DR-A

• Extended Product Type : CP1E

• Product ID : CP1E-N40DR-A

• OMRON Type Designation : CP1E

• Description : CONTROL LOG 24 IN 16OUT 100-240V

Features

• New CP1E CPU Units now available.  Lineup including CPU Units with built-in three ports: USB, RS-232C, RS-485.  The depth of CPU Units with RS-232C connectors is reduced by 20 mm. (N30/40/60S(1))
• Easy connection with computers using commercially available USB cables.
• With E30/40/60(S), N30/40/60(S@) or NA20 CPU Units, Add I/O, Analog I/O or Temperature Inputs by Connecting
Expansion Units or Expansion I/O Units.
• Input interrupts
• Complete High-speed Counter Functionality.
• Versatile pulse control for Transistor Output for N14/20/30/40/60(S@) or NA20 CPU Units.
• PWM Outputs for Transistor Output for N14/20/30/40/60(S@) or NA20 CPU Units.
• Mounting Serial Option Boards, Ethernet Option Board and Analog Option Board to N30/40/60 or NA20 CPU Units.
• Built-in analog I/O, two inputs and one output, for NA-type CPU Units.

International Standards

• The standards are abbreviated as follows: U: UL, U1: UL (Class I Division 2 Products for Hazardous Locations), C: CSA, UC: cULus,
UC1: cULus (Class I Division 2 Products for Hazardous Locations), CU: cUL, N: NK, L: Lloyd, KC: KC Registration, and CE: EU Directives.
• Contact your OMRON representative for further details and applicable conditions for these standards.

Specification

• Power Supply : 100 to 240 VAC
• Inputs : 24
• Outputs : 16
• Program capacity : 8K steps
• Data memory capacity : 8K words
• Standards : UC1, N, L, CE, KC
