Pepperl+Fuchs Encoder
P+F RHI90N-0IAK1R61N-01024 Encoder RHI90N0IAK1R61N01024
$800.00
AVAILABILITY: Generally allow 7-10 days to ship
Availability: 10 in stock

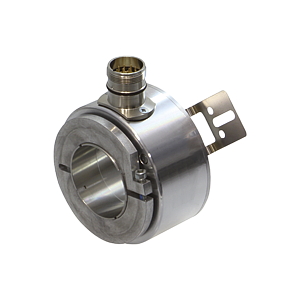

P+F RHI90N-0IAK1R61N-01024 Encoder RHI90N0IAK1R61N01024
- Extended Product Type: Encoder
- Product ID: RHI90N-0IAK1R61N-01024
- P+F Type Designation: Encoder
Features of P+F RHI90N-0IAK1R61N-01024 Encoder
- Compact design housing Ø90 mm
- Variable hollow shaft from Ø16 mm … Ø45 mm
- Up to 50,000 ppr
- Easy shaft clamping
- 10 V … 30 V with short-circuit proof push-pull output
- Very high resolution and accuracy
Specification of P+F RHI90N-0IAK1R61N-01024 Encoder
- Detection type: photoelectric sampling
- Pulse count: 1024
- Operating voltage: 10 … 30 V DC
- Output type: push-pull, incremental
- Connector: type 9416 (M23), 12-pin, type 9416L (M23), 12-pin
- Cable: ∅6.5 mm, 4 x 2 x 0.14 mm2, 1 m
- Mass: approx. 900 g
| Weight | 12 lbs |
|---|---|
| Dimensions | 12 × 10 × 12 in |
