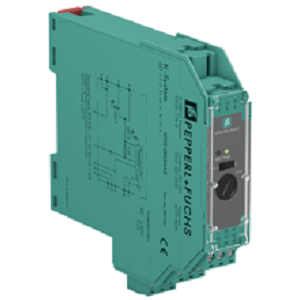

P+F Redundant Power Feed Module KFD2-EB2.R4A.B

P+F Redundant Power Feed Module KFD2-EB2.R4A.B

• Extended Product Type : Other

• Product ID : KFD2-EB2.R4A.B

• P+F Type Designation : Other

Specification of P+F KFD2-EB2.R4A.B

• Connection : terminals 11+, 12-,  terminals 8+, 9-
• Rated voltage : 20 … 30 V DC
• Power dissipation : ≤ 2.4 W
• Output rated operating current : max. 4 A
• Connection : screw terminals
• Mass : 100 g
• Mounting : on 35 mm DIN mounting rail acc. to EN 60715:2001
