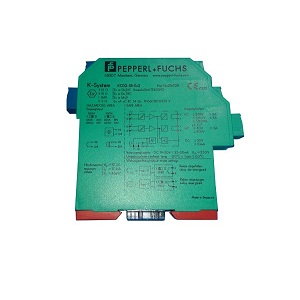

P+F Switch Amplifier KCD2-SR-EX2

P+F Switch Amplifier KCD2-SR-EX2

• Extended Product Type : Switch

• Product ID : KCD2-SR-EX2

• P+F Type Designation : Switch

Features

• 2-channel isolated barrier
• 24 V DC supply (Power Rail)
• Dry contact or NAMUR inputs
• Relay contact output
• Line fault detection (LFD)
• Housing width 12.5 mm
• Up to SIL 2 acc. to IEC 61508

Specification of P+F KCD2-SR-EX2

• Signal type : Digital Input
• Rated voltage : 19 … 30 V DC
• Power consumption : ≤ 600 mW
• Connection : Power Rail or terminals 9+, 10-
• Connection : screw terminals
• Mass : approx. 100 g
