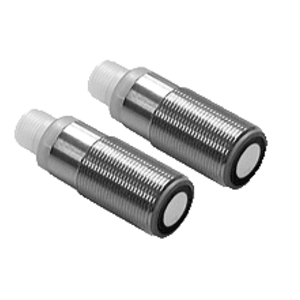

P+F Through-beam Ultrasonic Barrier UBE1000-18GM40-SE2-V1

P+F Through-beam Ultrasonic Barrier UBE1000-18GM40-SE2-V1

• Extended Product Type : Other

• Product ID : UBE1000-18GM40-SE2-V1

• P+F Type Designation : Other

Specification of P+F UBE1000-18GM40-SE2-V1

• Sensing range : 15 … 1000 mm
• Operating voltage : 10 … 30 V DC , ripple 10 %_SS
• No-load supply current : ≤ 20 mA
• Output type : PNP, NO
• Rated operating current :  200 mA , short-circuit/overload protected
• Connection type  : Connector M12 x 1 , 4-pin
• Mass : 25 g
