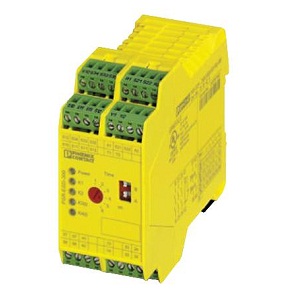

Phoenix Safety Relay PSR-SCP-24DC/ESD/5X1/1X2/300

Description

Phoenix Safety Relay PSR-SCP-24DC/ESD/5X1/1X2/300

• Extended Product Type : Relay

• Product ID : PSR-SCP-24DC/ESD/5X1/1X2/300

• Phoenix Type Designation : Relay

Description

• Maximum of 3 undelayed and 2 dropout delay contacts
• Manually monitored and automatic activation
• Up to Cat. 3/4 and PL d/e according to ISO 13849-1, SILCL 3 according to IEC 62061, SIL 3 according to IEC 61508
• For emergency stop and safety door monitoring, plus evaluation of light grids
• Single and two-channel control
• Adjustable delay time of 0.2 s … 300 s (24 increments)
• Protective labels to prevent manipulation of the set time (PSR-ESD-300) or electronic protection against manipulation (PSR-ESD-30)

Specification of Phoenix PSR-SCP-24DC/ESD/5X1/1X2/300

• Rated control circuit supply voltage : 24 V DC
• Power consumption : 3.72 W
• Contact type : 5 enabling current paths,  1 signaling current path
• Maximum switching voltage : 250 V AC/DC
• Relay type : Electromechanical relay with forcibly guided contacts in accordance with EN 50205
• Mounting type : DIN rail mounting
