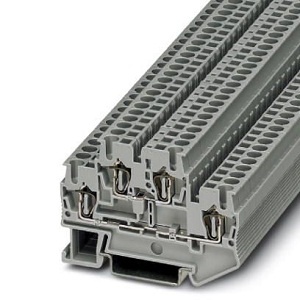

Phoenix Terminal Block STTB2.5

Description

Phoenix Termial Block STTB2.5

• Extended Product Type : Other

• Product ID : STTB2.5

• Phoenix Type Designation : Other

Description

• Double-level spring-cage terminal block, connection method: Spring-cage connection, cross section: 0.08 mm² – 4 mm², AWG: 28 – 12, width: 5.2 mm, color: gray, mounting type: NS 35/7,5, NS 35/15

Specification of Phoenix STTB2.5

• Number of levels : 2
• Number of connections : 4
• Nominal cross section : 2.5 mm²
• Color : gray
• Rated surge voltage : 6 kV
• Maximum load current : 26 A
• Nominal current : 22 A
• Nominal voltage  : 500 V
• Width : 5.2 mm
• Length : 67.5 mm
