Description

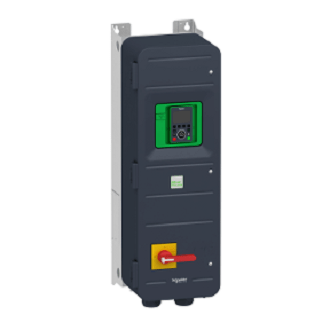

Schneider ATV950U75N4E Variable Motor VFD Drive 7.5kW / 10HP

• Extended Product Type: Inverter
• Product ID: ATV950U75N4E
• Schneider Type Designation: Inverter

Description of Schneider ATV950U75N4E Variable Motor Drive

Schneider Electric Variable Speed / Frequency Drive (VSD/VFD) / Inverter with braking. unit + incoming sw.-disconnect. – (Altivar Process 950 series) – Rated output 7.5kW / 10HP / 16.5A – 380Vac-480Vac (400Vac / 415Vac / 440Vac) input (3-phase) – IP55 – with Ethernet/IP / Modbus TCP / Modbus communication capability – Safe Torque Off (STO) – Wall mounting

Specifications of Schneider ATV950U75N4E Variable Motor VFD Drive

• Range of product: Altivar Process ATV950
• Product or component type: Variable speed drive
• Rated supply voltage: 380…480 V (- 15…10 %)
• motor power kW: 90 kW (normal duty), 75 kW (heavy duty)
• supply frequency: 50…60 Hz (+/- 5 %)
• line current: 156.2 A at 380 V (normal duty), 135.8 A at 480 V (normal duty), 134.3 A at 380 V (heavy duty), 118.1 A at 480 V (heavy duty)
• output voltage: <= power supply voltage
• height: 922 mm
• width: 290 mm
• depth: 325.5 mm
• product weight: 59.5 kg
