Schneider Electric HMISCU6A5

Description

Schneider Electric HMISCU6A5

• Extended Product Type : PLC

• Product ID  : HMISCU6A5

• Schneider Type Designation : PLC

Description

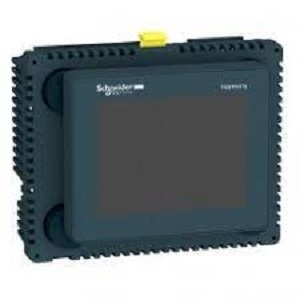

• Touchscreen HMI Integrated Controller with I/Os with fixing on 22mm diameter panel cut-out – Schneider Electric (Magelis SCU) – 320x240pixels display (3.5″ QVGA TFT 65K color with white LED backlight) – IP65 / NEMA 4X – 26I/O [16DI (14 x digital inputs (24Vdc; Sink/Source) + 2 x digital inputs (24Vdc; Sink/Source / 100kHz high speed counter HSC)) + 10DO (8 x digital outputs (SPST-NO / Form-A contact type; 2A at 24Vdc / 220Vac) + 2 x digital outputs (24Vdc; Push-pull; 300mA or PTO (50kHz pulse train) / PWM; 50mA))] – 128MB (Application) memory capacity – with Modbus + Modbus TCP/IP + RS-232C + RS-485 + CANopen + Ethernet TCP/IP communication capability – 24Vdc supply voltage – with USB mini-B port + USB type A port + RJ45 ports x 2 + 9-pin D-Sub connector – Flush mounting – with Magelis OS pre-installed – 333 MHz RISC processor – contains screen module + controller module

Specification of Schneider HMISCU6A5

• Series : Magelis SCU
• Main function : HMI / Display unit
• Functions : Touchscreen HMI Integrated Controller with I/Os with fixing on 22mm diameter panel cut-out
  with control PID, 32 groups of 64 recipes comprising 1024 ingredients max recipes, curves with log, alarm log
  built-in real-time clock
• Supply voltage (DC) : 24Vdc
• Display type : 3.5″ QVGA TFT 65K color with white LED backlight
• Power consumption : 24 W
