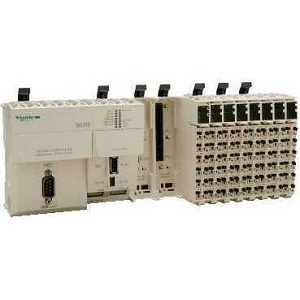

Schneider Electric TM258LF66DT4L

Schneider Electric TM258LF66DT4L

• Extended Product Type : PLC

• Product ID  : TM258LF66DT4L

• Schneider Type Designation : PLC

Description

• Programmable Logic Controller (PLC) CPU with embedded I/Os (inputs & outputs) – Schneider Electric (Modicon M258) – 38DI (30 x digital 24Vdc inputs + 8 x digital high speed counter inputs (100 kHz)) + 28DO (24 x digital transistor outputs (0.5A) + 4 x digital reflex transistor outputs) – 4AI (4 x analog intelligent inputs (selectable +/-10Vdc / 4-20mA / 0-20mA) – 12-bit (inputs)) – Supply voltage (DC) 24V – with 1 x Ethernet + 1 x CANopen master + 1 x USB-A port; program transfer – Memory capacity (RAM) 64MB – IP20

Specification of Schneider TM258LF66DT4L

• Series : Modicon M258
• Main function : CPU unit
• Functions : Programmable Logic Controller (PLC) CPU with embedded I/Os (inputs & outputs), 2 x PCI slots for optional communication module
• Speed : 45K Boolean instructions/ms
• Power consumption : 18 W
• Supply voltage : (DC) 24 V
• Net weight : 0.8 kg
