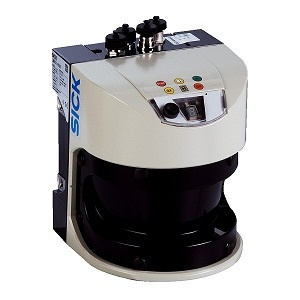

Sick LMS511-20100 Laser Scanner LMS51120100 ID: 1047782

• Extended Product Type: Sensor

• Product ID: LMS511-20100

  Part no.: 1047782

• Sick Type Designation: Sensor

Specification of Sick LMS511-20100 Laser Scanner ID: 1047782

• Application: Outdoor, Indoor
• Variant: PRO
• Resolution power: High Resolution
• Light source: Infrared (905 nm, ± 10 nm)
• Laser class 1 (EN/IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
• Aperture angle: Horizontal 190°
• Scanning frequency: 25 Hz, 35 Hz, 50 Hz, 75 Hz, 100 Hz
• Angular resolution: Horizontal 0.042°, interlaced, 0.083°, interlaced, 0.1667°, 0.25°; 0.333°, 0.5°, 0.667°, 1°
• Scan field flatness: Scan field flatness combined: ± 0.72°
• Typical conical error: 1 sigma value – 0.11° ± 0.1°
• Typical tilt: 1 sigma value + 0.15° ± 0.08°
• Heating Self-heating with additional integrated heating
• Working range: 0.2 m … 80 m
• Scanning range: At 10% remission factor 26 m
• Measurement accuracy: ± 12 mm
• Spot size
• Divergence: 4.7 mrad
• At the viewing window: 13.5 mm, In 26 m: 136 mm, In 40 m: 202 mm
• Amount of evaluated echoes: 5
