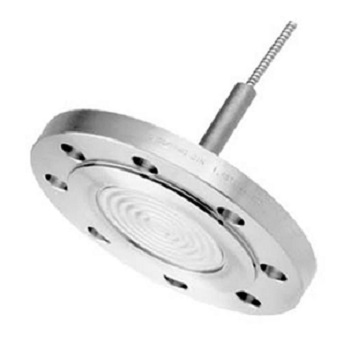

Siemens 7MF4912-3QA03 Diaphragm Seal 7MF49123QA03

• Extended Product  Type: Diaphragm Seal
• Product ID: 7MF4912-3QA03
• ABB Type Designation: Diaphragm Seal

Description of Siemens 7MF4912-3QA03 Diaphragm Seal

The Siemens 7MF4912-3QA03 Diaphragm Seal is a high-performance pressure interface designed to protect sensitive measurement instruments in demanding industrial environments. Engineered for accuracy and durability, this diaphragm seal isolates pressure transmitters from aggressive, viscous, corrosive, or high-temperature media while maintaining precise pressure transmission.

Built as part of the trusted SITRANS pressure measurement portfolio, this diaphragm seal ensures optimal system reliability in critical processes where direct contact between the process medium and the sensing element is not feasible. Its robust construction and compatibility with a wide range of fill fluids and materials make it suitable for highly specialized applications across industries.

The Siemens 7MF4912-3QA03 is particularly effective in maintaining measurement integrity under extreme conditions such as high pressures, temperature fluctuations, and chemically aggressive environments. It is designed for seamless integration with pressure transmitters, enabling consistent performance and reduced maintenance requirements.

Technical Specifications of Siemens 7MF4912-3QA03 Diaphragm Seal

Parameter	Specification
Product Type	Diaphragm Seal
Model Number	7MF4912-3QA03
Manufacturer	Siemens
Application Interface	Pressure transmitters
Wetted Parts Material	Stainless steel / optional special alloys
Diaphragm Material	Stainless steel / Hastelloy (application dependent)
Process Connection Type	Threaded or flanged (configuration dependent)
Fill Fluid	Silicone oil / inert fluids (based on application requirements)
Pressure Transmission	Hydraulic via diaphragm and fill fluid
Temperature Range	Suitable for high and low temperature applications
Corrosion Resistance	High resistance to aggressive and corrosive media
Compatibility	Liquids, gases, viscous, crystallizing, or contaminated media
Mounting	Direct or capillary-mounted
Maintenance Requirement	Low
Compliance	Industrial standards for pressure measurement systems

Key Features of Siemens 7MF4912-3QA03 Diaphragm Seal

• Protects pressure instruments from harsh and corrosive process media
• Ensures accurate pressure transmission via hydraulic diaphragm system
• Suitable for extreme temperature and pressure environments
• Compatible with viscous, contaminated, or crystallizing fluids
• High corrosion resistance with multiple material options
• Flexible installation (direct mount or capillary connection)
• Reduces maintenance and extends transmitter lifespan
• Seamless integration with Siemens pressure transmitters
• Engineered for long-term stability and reliability

Applications of Siemens 7MF4912-3QA03 Diaphragm Seal

The Siemens 7MF4912-3QA03 diaphragm seal is widely used in industries where process conditions can compromise direct pressure measurement:

• Chemical Processing – Handling corrosive acids, solvents, and reactive fluids
• Oil & Gas – Monitoring pressure in harsh upstream and downstream environments
• Food & Beverage – Hygienic applications with viscous or sensitive media
• Pharmaceuticals – Sterile and contamination-sensitive processes
• Power Generation – High-temperature steam and fluid systems
• Water & Wastewater – Sludge, slurry, and contaminated fluid measurement
• Industrial Automation – Integration with advanced control systems and PLCs

Siemens diaphragm seal, 7MF4912-3QA03 diaphragm seal, industrial diaphragm seal, pressure transmitter diaphragm seal, corrosion resistant diaphragm seal, high temperature pressure seal, SITRANS diaphragm seal, industrial pressure measurement accessories

Frequently Asked Questions (FAQ)

1. What is the purpose of the Siemens 7MF4912-3QA03 diaphragm seal?
It isolates the pressure transmitter from harsh process media while accurately transmitting pressure via a fill fluid, protecting the instrument and ensuring measurement accuracy.

2. Can this diaphragm seal be used with corrosive chemicals?
Yes, it is specifically designed for corrosive and aggressive environments, with material options such as stainless steel and Hastelloy for enhanced resistance.

3. Is the diaphragm seal suitable for high-temperature applications?
Yes, it is engineered to operate in both high and low temperature conditions, depending on the selected fill fluid and configuration.

4. What types of media can it handle?
It is suitable for liquids, gases, viscous fluids, slurries, and crystallizing or contaminated media.

5. Does it require frequent maintenance?
No, the diaphragm seal is designed for low maintenance and long-term stability in demanding industrial environments.

6. Can it be used in hygienic applications?
Yes, it can be configured for hygienic processes such as food, beverage, and pharmaceutical industries.
