Description

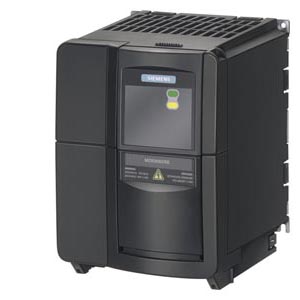

Siemens Micromaster 420 AC Frequency Inverter 6SE6420-2UD23-0BA1

Siemens Micromaster 420 (MM420) Series AC Frequency Inverter for 3.0kW (4HP) 400V 3 Ph motor in VxF control to 7.7A. Simple set-up and ready to run from its default settings.

No keypad included, see linked products below for Basic and Advanced Operator Panels.

Dimensions: Frame Size B 149mm Wide x 202mm High x 172mm Deep.
Enclosure Rating: IP20.

Overload: 150% x 60seconds.
Speed Control Range: 0Hz to 650Hz.
Braking: DC braking, compound braking.

Features: 1 Analogue Input, 3 Digital Inputs, 1 Analogue Output, 1 Relay Output.
Input Current: 10A.
Input Voltage: 3ph 380-480V ± 10%, 47-63Hz.
EMC Filter:  None, see the linked products below for equivalent Drive with EMC filtering.

Mounting:  Cubicle mount.
Ambient:  Rated -10° to 50°C.
Ventilation space above and below: 100mm.
Ventilation space at sides: 0mm (drives can be mounted side by side).

Part Number: 6SE6420-2UD23-0BA1, or 6SE64202UD230BA1. Note: Siemens is sometimes incorrectly spelled Seimens.
