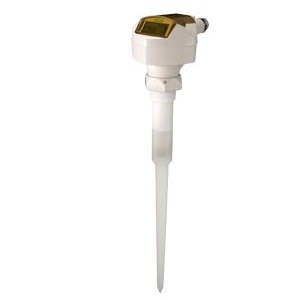

Siemens Radar Level Transmitter 7ML5430-1AA10

Siemens Radar Level Transmitter 7ML5430-1AA10

• Extended Product Type : Other

• Product ID : 7ML5430-1AA10

• Siemens Type Designation : Other

Description

• SITRANS Probe LR Radar level transmitter: continuous, non-contact, 20 m (66 ft) range, for liquids and slurries. Enclosure / Cable Inlet: Plastic, (PBT), Qty 2 x 1/2 inch NPT Antenna Type / Material – (Max 3 Bar and 80 deg. ‘C), Polypropylene-antenna: 1-1/2 inch NPT ((Taper), ANSI/ASME B1.20.1), comes with integral 100 mm shield Approvals: General Purpose, CE Includes European Radio approvals (R&TTE), 5.8 GHz Communication / Output: 4-20mA, HART .

Specification of Siemens 7ML5430-1AA10

• Product Lifecycle (PLM) : PM300:Active Product
• Net Weight (kg) : 4.500 Kg
• Product Group : 4716
• Group Code : R3P5
• Product class :   A: Standard product which is a stock item could be returned within the returns guidelines/period.
