Description

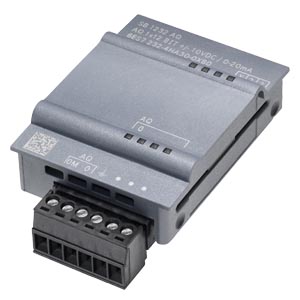

SIEMENS 6ES7 232-4HA30-0XB0 Analog Output Module 6ES72324HA300XB0

Overview

Siemens SIMATIC S7-1200 Series CPU — The Basic Controller – All in one!

The new modular SIMATIC S7-1200 controller is at the core of our new offering for simple but highly precise automation tasks. The SIMATIC S7-1200 controller is modular and compact, versatile, a secure investment, and is perfectly suited to a whole range of applications. The S7-1200 CPUs with Safety Integrated handle both standard and safety-related tasks. A compact design with integrated IO, communication interfaces that meet the highest industry requirements and a range of powerful integrated technological functions make this controller an integral part of a comprehensive automation solution.

Scalable performance and functionality for consistent and efficient engineering: the SIMATIC S7-1500 devices seamlessly continue the functionality of the SIMATIC S7-1200 controllers. This makes subsequent expansions easier and more cost-effective.

SIMATIC S7-1200 Basic Controllers are the ideal choice when it comes to performing automation tasks in the low to mid-performance range with maximum flexibility and efficiency. They deliver convincing results thanks to their comprehensive range of technological functions and integrated I/Os, as well as their compact, space-saving design. Thanks to standardized remote control protocols, you can connect SIMATIC S7-1200 controllers directly to your control center without any programming effort.

Features:

• Complex wiring of the safety function (for feedback and possible functional dependencies)
• Fault diagnosis only possible by means of onboard LEDs and not on a central HMI panel
• Reduced effort required for wiring:
• All information (e.g. signal states and diagnoses) is already available in the system
• Efficient fault diagnosis centrally on an HMI panel
• Compact construction with integrated I/Os and flexibility due to the board concept
• Security thanks to protected access to the CPU and program copy protection
• Incorporated functions and flexible connection of drives
• System diagnostics indicate error messages in plaintext in the TIA Portal on the HMI or web server
• Efficient engineering With SIMATIC STEP 7 Basic in the TIA Portal
• Fail-safe CPUs for the execution of standard and safety-related programs
• Flexible integration into all network structures PROFINET, PROFIBUS, AS-i, IO-Link, CANopen or even connection to remote control centers
• Use in extreme ambient conditions as SIPLUS S7-1200 version
• Early detection of mechanical damageS7-1200 Version Features:
• The compact SIMATIC S7-1200 system consists of different CPU performance classes:
• CPU 1211C, CPU 1212C, CPU 1214C, CPU 1215C and CPU 1217C
• The Failsafe versions: CPU 1212FC, CPU 1214FC and CPU 1215FC
• Each of these may be expanded according to the machine requirements
• The S7-1200 CPUs can be expanded with up to three communication modules (CM) and eight signal modules (SM)
• Signal modules and signal boards can be integrated in order to expand the digital or analog IOs without affecting the physical size of the controller
• Signal modules can be connected to the right side of the CPU to further expand the digital or analog IO capacity
• CPU 1212C accepts two, CPU 1215C and CPU 1217C accept eight signal modules
• All SIMATIC S7-1200 CPUs can be equipped with up to three communication modules on the left side of the controller – this enables seamless serial communication and the use of various distributed IO devices
