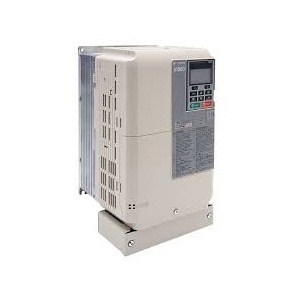

Yaskawa CIMR-AU2A0081FAA AC Drive 30HP CIMRAU2A0081FAA

• Extended Product Type: AC Drives
• Product ID: CIMR-AU2A0081FAA
• Yaskawa Type Designation: AC Drives

Description of Yaskawa CIMR-AU2A0081FAA AC Drive 30HP

Yaskawa CIMR-AU2A0081FAA Variable Frequency Drive A1000 AC Drive 200-240 VAC Constant Torque with input options of either Three Phase: 30 Hp 81 Amp or (Single Phase: 10 Hp 31 Amp) Industrial VFD. Nema 1 Chassis 15.75″ x 8.66″ x 7.76″ includes configurable LCD display and keypad with built in memory for backup. Includes 3 Analog inputs, 2 programmable Analog outputs, 8 programmable Digital inputs with 1 can be used as pulse input, 4 digital outputs. WE RECCOMEND Line and Load Reactors for all VFD’s. Line (Input) Reactors reduce hamonics generated going back into the line and protect the VFD from input power disturbances that can trip and damage drives.

Specification of Yaskawa CIMR-AU2A0081FAA AC Drive 30HP

• Manufacturer: Yaskawa
• Series: A1000 Series
• Model Number: CIMR-AU2A0081FAA
• Horsepower: 30.0 HP
• Input Voltage(s): 208 – 240 VAC Input,
• Rated Current: 75.0 Amps
• Output Voltage(s): 240 VAC Output
• Input Phase: Three Phase Input
• Output Phase: Three Phase Output
• Phase Converter: No
• Digital Input(s): 8 Inputs (NPN)
• Digital Output(s): 3 Outputs (Relay)
• Analog Input(s): 3 Inputs (0 – 10 VDC / -10 – 10 VDC / 4 – 20 mA)
• Analog Output(s): 2 Outputs (0 – 10 VDC / 2 – 10 VDC / 4 – 20 mA)
• Integrated EPM Module: Not Applicable
• Integrated Keypad: Yes
• Integrated Forward / Rev Switch: No
• Integrated Speed Pot: No
• Integrated Disconnect: No
• Integrated Brake Chopper: No
• Integrated Communications: ModBus RTU (RS-485)
