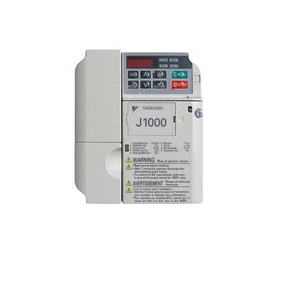

Yaskawa CIMR-JU4A0001BAA AC Drive CIMRJU4A0001BAA 1/2HP

• Extended Product Type: AC Drives
• Product ID: CIMR-JU4A0001BAA
• Yaskawa Type Designation: AC Drives

Description of Yaskawa CIMR-JU4A0001BAA AC Drive

Yaskawa AC Drives, J1000 Series CIMR-JU4A0001BAA – Drive, AC, 1/2HP, 480V, 3PH, 1.2A, CT 1/2HP, 1.2A, VT, IP20 5″Hx4.25″Wx3.19″D

Specification of Yaskawa CIMR-JU4A0001BAA AC Drive 0.5HP

• Manufacturer: Yaskawa
• Series: J1000 Series
• Model #: CIMR-JU4A0001BAA
• Enclosure: NEMA 1
• Cooling Type: Fan Cooled
• Horsepower: 0.5 HP
• Input Voltage(s): 400 – 480 VAC Input
• Output Voltage: 480 VAC Output
• Input Phase(s): Three Phase Input
• Output Phase: Three Phase Output
• Phase Converter: No
• Output Current: 1.2 Amps
• Digital Input(s): 8 Inputs (NPN)
• Digital Output(s): 3 Outputs (Relay)
• Analog Input(s): 3 Inputs (0 – 10 VDC / -10 – 10 VDC / 4 – 20 mA)
• Analog Output(s): 2 Outputs (0 – 10 VDC / 2 – 10 VDC / 4 – 20 mA)
• Operating Mode(s): Sensorless (Open Loop) Vector Control, Speed Control (V / Hz), Torque Control (Constant), Torque Control (Variable)
• Integrated Communications: ModBus RTU (RS-485)
