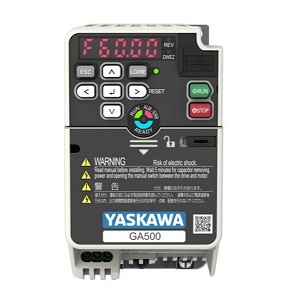

Yaskawa GA50U4018EBA AC Drive 10HP 17.5 Amp (GA50U4018EBA)

• Extended Product Type: AC Drives
• Product ID: GA50U4018EBA
• Yaskawa Type Designation: AC Drives

Description of Yaskawa GA50U4018EBA AC Drive 10HP

Yaskawa GA50U4018EBA 480 Volt Three Phase 17.5 Amp 10 HP Microdrive. The GA500 Industrial AC Microdrive is engineered to help you easily handle nearly any application. Sustainability, flexibility, and ease of use are all designed into the drive, helping you make complicated tasks simple. Offering intuitive interaction and world-class quality, the GA500 is the drive you can count on for constant, high quality performance.

Specification of Yaskawa GA50U4018EBA AC Drive 10HP 17.5 Amp

• Manufacturer: Yaskawa
• Series: GA500 Series
• Model #: GA50U4018EBA
• Enclosure: NEMA 1
• Cooling Type: Fan Cooled
• Horsepower: 10.0 HP
• Input Voltage(s): 400 – 480 VAC Input
• Output Voltage: 480 VAC Output
• Input Phase(s): Three Phase Input
• Output Phase: Three Phase Output
• Phase Converter: No
• Output Current: 17.5 Amps
• Digital Input(s): N/A
• Digital Output(s): N/A
• Analog Input(s): N/A
• Analog Output(s): N/A
• Operating Mode(s): Sensor (Closed Loop) Vector Control (Requires Feedback Module), Sensorless (Open Loop) Vector Control, Speed Control (V / Hz), Torque Control (Constant), Torque Control (Variable)
