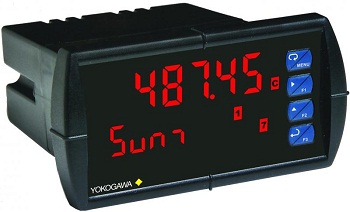

YPP6060 Dual-Input Process Meter

The PROPLUS YPP6060 Dual-Input Process Meter accepts two simultaneous inputs of  0-20mA, 4-20mA, 0-5V, 1-5V, and +/- 10V. Additional math features include addition, difference, average, multiplication, division, min., max., weighted average, ratio, concentration, & more.

Features include:

• Dual Process Inputs: 0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and &plusm;10 V
• Math Functions: Addition, Difference, Average, Multiplication, Division, Min, Max, Weighted Average, Ratio, Concentration, & More
• 32-Point, Square Root, or Exponential Linearization
• Multi-Pump Alternation Control
• Isolated 24 VDC @ 200 mA Transmitter Power Supply
• Large Dual-Line 6-Digit Display, 0.60″ & 0.46″
• Sunlight Readable Display Models
• NEMA 4X, IP65 Front
• Programmable Display & Function Keys
• Universal 85-265 VAC, or 12/24 VDC Input Power Models
• 2 or 4 Relays + Isolated 4-20 mA Output Options
• External 4-Relay & Digital I/O Expansion Modules
• USB, RS-232, RS-485 Serial Communication Options
• Modbus® RTU Communication Protocol Standard
• Free PROPLUS Software for Operation, Monitoring, and Programming
