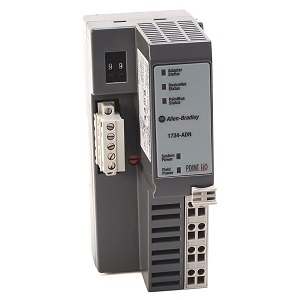

Allen Bradley 1734-ADN

Allen-Bradley 1734-ADN

• Extended Product Type : PLC

• Product ID  : 1734-ADN

• Allen-Bradley Type Designation : PLC

Description

• The Allen-Bradley 1734-ADN is a Point I/O DeviceNet communication module. It enables distributed I/O implementation by allowing Point I/O modules installed to its local bus and transfer I/O data via the integrated DeviceNet interface. This module supports DIN rail mounting and requires 24 Volts DC Input Voltage and a Field Side Power of 400 milliamps with an Inrush Current of 6 amps. This DeviceNet Adapter Module has a 1000 milliamps POINTBus Current.

Specification of Allen-Bradley 1734-ADN

• Series : POINT I/O
• Module Type : DeviceNet Adapter Module
• Input Voltage : 23 Volts DC
• Inrush Current : 6 Amps
• Power Consumption : 8.1 Watts
• I/O Module Capacity : 63 modules
• I/O Points : 504 max
