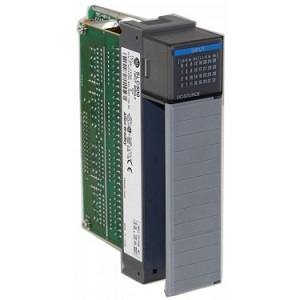

Allen-Bradley 1746-IV32 DC Input Module 1746IV32

• Extended Product  Type: PLC
• Product ID: 1746-IV32
• Allen-Bradley Type Designation: PLC

Description Allen-Bradley 1746-IV32 DC Input Module 1746IV32

Allen-Bradley 1746-IV32 SLC 500 24V DC Input Module, 32 Inputs 24V DC, 8 Points Per Common, Sourcing. The Allen-Bradley 1746-IV32 DC Input Module is a 24V DC input module with 32 inputs, eight points per common, sourcing. It has four groups and an input voltage range of 15 to 30V dc at 50° C, and 15 to 26.4V dc at 60° C.

Specification of Allen-Bradley 1746-IV32 DC Input Module

• Module Type: 24VDC input module
• No. of groups: 4
• Input voltage range: 15 to 30V dc at 50° C; 15 to 26.4V dc at 60° C
• Input current: 5.1 mA at 24V dc
• Inputs: 32
• Voltage Range: 15-30 Volts DC Source
