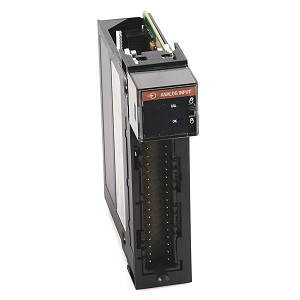

Allen Bradley 1756-IF8 Analog Input Module 1756IF8

• Extended Product Type: PLC
• Product ID: 1756-IF8
• Allen-Bradley Type Designation: PLC

Description of Allen Bradley 1756-IF8 Analog Input Module

The Allen-Bradley 1756-IF8 is an analog input module from the ControlLogix product family. This module features Eight (8) single-ended, differential and Two high-speed differential input channels, configurable for +/-10VDC, 0-10VDC, 0-5VDC and 0-20 mA input signals with resolution of 15 bits for +/-10VDC and 16 bits for other signal types.

Specification of Allen Bradley 1756-IF8 Analog Input Module

• Series: ControlLogix
• Module Type: Analog Input
• Backplane Current (24Volts): 40 mA
• No. of Inputs: 8- channel Voltage / Current inputs
• Inputs: 2 high-speed differential, 4 differential, 8 single-ended
• Power Consumption: 1.73 Watts
