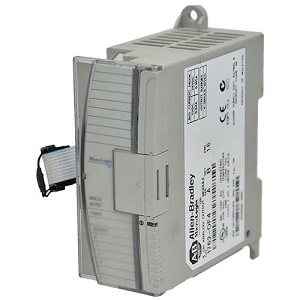

Allen Bradley 1762-OF4 Analog Output Module 1762OF4

• Extended Product Type: PLC
• Product ID: 1762-OF4
• Allen-Bradley Type Designation: PLC

Description of Allen Bradley 1762-OF4 Analog Output Module

The 1762-OF4 is MicroLogix 1200 analog output module. This module has Four (4) Voltage and Current channels. Applicable output voltage and current range are 0-10VDC and 4-20mA. Output signals may be used to drive modulating actuators and devices. This module is compatible for use with MicroLogix 1100 / 1200 and 1400 controllers.

Specification of Allen Bradley 1762-OF4 Analog Output Module

• Series: MicroLogix
• Module Type: Analog Output Module
• Outputs: (4) Analog
• No. of Outputs: Four (4) Single-ended
• Input Power: 24 Volts DC
• Analog normal operating range: 0-10 Volts DC; 4-20 mA
• Output Range: 0-10 Volts DC
• Converter Type: R-2R Ladder Voltage Switching
• Dimensions(HxDxW): 90 x 87 x 40 mm
