Allen-Bradley 1769-ECR

Description

Allen-Bradley 1769-ECR

• Extended Product Type : PLC

• Product ID  : 1769-ECR

• Allen-Bradley Type Designation : PLC

Description

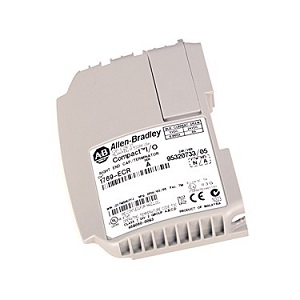

• The 1769-ECR is a Right End Cap (ECR) module that is used with the CompactLogix product family. This module is installed at the right sight of the last module of a CompactLogix assembly. It has a current draw of 5 mA at 5.1 VDC, weighs 130 g (0.286 lb) with open style enclosure.

Specification of Allen-Bradley 1769-ECR

• Series : CompactLogix
• Module Type : Right End Cap
• Operating altitude : 2000 m (6562 ft)
• Maximum Bus Current Draw : 5 mA at 5 volts DC
• Backplane Current : 1.4 Amps at 24 Volts
• Power Consumption : 33.6 Watts
• Weight : 525 g (1.16 lb)
