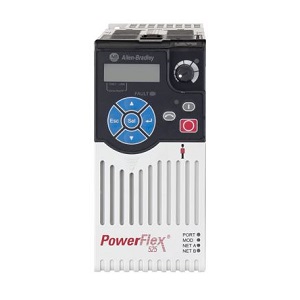

Allen-Bradley 25B-D2P3N114 AC Drive

Description

Allen-Bradley 25B-D2P3N114 AC Drive

• Extended Product  Type : PLC

• Product ID : 25B-D2P3N114

• Allen-Bradley Type Designation : PLC

Description of Allen-Bradley 25B-D2P3N114 AC Drive

• The 25B-D2P3N114 is a PowerFlex 525 Adjustable Frequency AC Drive from Allen-Bradley. This drive operates when supplied with voltage of 480VAC, 3-Phase. It delivers output power of 0.75 kW or 1.0 HP for both normal and heavy-duty operation. The drive’s output Current is 2.3 Amperes with an IP20 NEMA / Open rated enclosure. It has an integral EMC filter.

Specification of Allen-Bradley 25B-D2P3N114 AC Drive

• Brand: Allen-Bradley
• Built-in communication port : Ethernet I/P / RS485
• Integrated safety : Safe-Torque Off (STO) functionality
• Enclosure Rating : IP20 / NEMA UL Type Open
• Installation : Panel Mount / DIN Rail
• Control Method : Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), Closed loop velocity vector control, and Permanent Magnet motor control.
• I/O : Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA
• Output Power : 0.75 kW or 1.0 HP
• Output Voltage : 0-460VAC
• Input Voltage : 323-528 VAC
• Input Phase : 3-Phase
• Output Current : 2.3 A
• Frame Size : Frame A
• Voltage : Three Phase, 480 VAC
• Interface Module : Standard
• EMC Filtering Options : Filter
