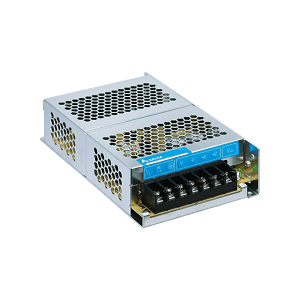

Delta Power Supply PMC-24V100W1AA

Delta Power Supply PMC-24V100W1AA

• Extended Product Type : Power Supply

• Product ID : PMC-24V100W1AA

• Delta Type Designation : Power Supply

Features

• Universal AC input range
• Power will not de-rate for the entire input voltage range
• Full corrosion resistant aluminium casing
• High MTBF > 700,000 hrs. as per Telcordia SR-332
• Safety approval according to IEC/EN/UL 60950-1
• Also available: IP20 and Front Face connectors

Specification of Delta PMC-24V100W1AA

• Nominal Output Voltage : 24V
• Output Current : 4.17A
• Output Power : 100W
• Nominal Input Voltage : 100-240Vac
• Input Current : < 2.0A @ 115Vac, < 1.1A @ 230Vac
• Dimensions : 158 x 97 x 38 mm
• Weight(L x W x D) : 0.41 kg
