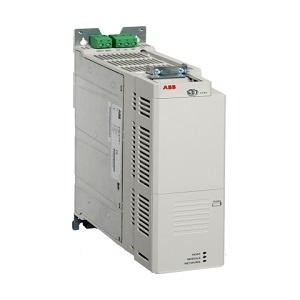

ABB ACS850-04-010A-5 AC Drive 4kW 10.5A ACS85004010A5

• Primary brand: ABB
• Main function: Variable Speed/Frequency Drive (VSD/VFD) / Inverter
• Product series / family name: ACS580 series
• Network frequency: 47-63 Hz
• Functions: Variable Speed/Frequency Drive (VSD/VFD) / Inverter, STO Safe Torque OFF (SIL3 as per IEC61511 / SILCL3 as per IEC62061 / PLe ISO13849-1), Diagnostics, Start-up assistant, Start interlock / drive interlock input, Removable memory unit,
• Design: EMC filter, brk. chopper, Load analyzer, Choke
• Assistant control panel: IP55 / UL type 12, brake chopper, Choke
• Supply voltage (AC): 380Vac-480Vac, 380Vac-480Vac (400Vac / 415Vac / 440Vac)
• Type of network: 3-phase / 3P
• Rated current: 10.5A (nom. I2N; 230Vac), 9.7A (LD Light-Duty; 400-500Vac), 9A (HD Heavy-Duty; 400-500Vac), 13.5A maximum
• Rated active power (kW): 4kW (LD Light-Duty; 400Vac), 5.5kW (LD Light-Duty; 500Vac), 4kW (HD Heavy-Duty; 400Vac), 4kW (HD heavy-duty; 500Vac)
• Rated power (HP): 5HP (LD Light-Duty; 480Vac), 5HP (HD Heavy-Duty; 480Vac)
• Protection functions: Ambient temperature protection, DC overvoltage and under-voltage, Drive temperature, Input / motor / panel phase loss, Overcurrent, Adjustable power limit, Short circuit, Control signal supervision, Critical frequencies lock-out, Current and torque limit, Earth fault, External fault, Motor stall protection, Motor thermal protection, Motor underload protection
• Communication protocol: Modbus
• Mounting mode: Surface / wall
• Digital inputs: 1 x digital input (24Vdc) (DI1 START/STOP)
  • 1 x digital input (24Vdc) (DI2 FWD/REV)
  • 2 x digital inputs (24vdc) (DI3 / DI4 constant speed selection)
  • 1 x digital input (24Vdc) (DI5 ramp pair selection)
  • 1 x digital input (24Vdc) (DI6)
• Digital outputs: 1 x digital output (SPDT rly. contact; 2A 250Vac/30Vdc) (RO1 READY)
  • 1 x digital output (SPDT rly. contact; 2A 250Vac/30Vdc) (RO2 RUNNING)
  • 1 x digital output (SPDT rly. contact; 2A 250Vac/30Vdc) (RO3 FAULT)
• Analog inputs: 1 x analog input (0-10Vdc) (AI1 External frequency reference)
  • 1 x analog input (0-10Vdc) (AI2)
• Analog outputs: 1 x analog output (0-20mA) (AO1 inverter output frequency)
  • 1 x analog output (0-20mA) (AO2 inverter output current)
• Degree of protection: IP20
• Dimensions: Frame size B
• Ambient air temperature for operation: -10…+55 °C
• Power dissipation/losses: 212 W
• Application type: Machinery drives, Programming flexibility for multi and single axis machinery use
• Order code / Manufacturer SKU: 3AUA0000050912
• Manufacturer product status: Commercialized
• Equivalent to: ACS85004010A5
• Compliant with standard(s): CE marking, IEC 60721-3-1 Class 1C2/1S2, IEC 60721-3-2 Class 2C2 / 2S2, IEC 60721-3-3 Class 3C2 / 3S2, EN/IEC 61000-3-12, IEC 61508 ed2 SIL 3, IEC 61511 SIL 3, IEC 61800-9-2, IEC 62061 SIL CL 3, EN ISO 13849-1 PL e, EN 61800-3, EN 61800-5-1, EN 61800-5-2, cUL, UL, EAC, RoHS, UKCA, RCM, WEEE

• The ACS580 is an all-compatible ABB general purpose drive offered in a range of wall-mounted drives or drive modules and cabinet-built drives
• It turns complicated to simple and controls processes productively and efficiently

One product with many applications

• ACS580 drives include all the essential components for typical light industry applications with a scalable offering from 0.75kW to 500kW
• The drive is ready to control compressors / conveyors / mixers / pumps and fans as well as many other variable and constant torque applications
• The all-compatible drives family ensures that you will always find the best drive for your needs
• These drives share a similar user interface and PC tools — making using and learning them fast and easy

Reliability and consistent high quality

• ACS580 drives are designed for customers who value high quality and robustness in their applications
• The product features such as coated boards and compact IP55 enclosure — make the ACS580 suitable for harsh conditions also
• Additionally all ACS580 drives are tested at maximum temperature and with nominal loads
• The tests include performance and all protective functions

Easier than ever before

• ACS580 drives have all the essential features built-in reducing the commissioning and set-up time
• The assistant control panel with multiple language choices is standard in ACS580 drives
• Users can also upgrade to an optional Bluetooth control panel for wireless commissioning and monitoring
• Primary settings and application control macros ensure quick product setup
