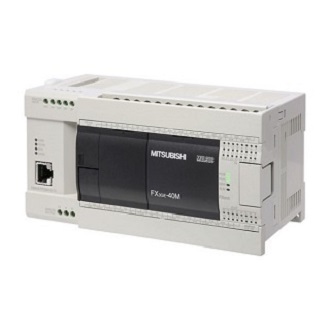

Mitsubishi FX3GE-40MT/DS PLC CPU Main I/O Module FX3GE40MTDS

Mitsubishi FX3GE-40MT/DSS PLC CPU I/O Module FX3GE40MTDSS

$1,890.00

AVAILABILITY: Generally allow 7-10 days to ship

8 in stock

SKU: FX3GE-40MT/DSS Category: Tag:
Mitsubishi

Description

Mitsubishi FX3GE-40MT/DSS PLC CPU I/O Module FX3GE40MTDSS

  • Extended Product Type: PLC
  • Product ID: FX3GE-40MT/DSS
  • Mitsubishi Type Designation: PLC

Description of Mitsubishi FX3GE-40MT/DSS CPU I/O Module

Mitsubishi FX3GE-40MT/DSS Standard Programmable Logic Controller (PLC) CPU main unit with integrated I/Os – (MELSEC-F (FX) Series FX3GE) – 40I/O [24DI (24 x digital inputs (24Vdc; positive/negative common; Sink/Source)) + 16DO (16 x digital outputs (5-30Vdc; Sink; 500mA; 0.2ms response))] – 32Ksteps (EEPROM; Program) memory capacity – connection capacity 128 x I/O points – with USB connector + screw-clamp term. connections (I.O’s) + RJ45 port (10/100Mbit Ethernet) – with RS-422 + Ethernet communication capability – Supply voltage 24Vdc – DIN rail mounting (175mm width) – equivalent to FX3GE40MTDSS

Specifications of Mitsubishi FX3GE-40MT/DSS PLC CPU Main I/O Module

  • Primary brand: Mitsubishi Electric
  • Main function: CPU unit
  • Product series / family name: MELSEC-F (FX) Series
  • Sub-range name: FX3GE
  • Functions: Standard Programmable Logic Controller (PLC) CPU main unit with integrated I/Os, Program execution type — Cyclical / Refresh mode processing
  • Supply voltage (DC): 24Vdc
  • Memory capacity: 32Ksteps (EEPROM; Program)
    • 7680 points (Auxiliary relays)
    • 320 points (Timers)
    • 235 points (Counters)
    • 8000 points (Data registers)
    • 24000 points (Extension registers)
  • Connection capacity: 128 x I/O points, 256 x I/O points (with CC-Link or AnyWireASLINK)
  • Connection type: USB connector, screw-clamp term. connections (I.O’s), RJ45 port (10/100Mbit Ethernet)
  • Communication protocol: RS-422, Ethernet
  • Mounting mode: DIN rail
  • Digital inputs: 24 x digital inputs (24Vdc; positive/negative common; Sink/Source)
  • Digital outputs: 16 x digital outputs (5-30Vdc; Sink; 500mA; 0.2ms response)
  • Ambient air temperature for operation: 0…+55 °C
  • Ambient air temperature for storage: -25…+75 °C
  • Programming languages: Ladder diagram (LD) / Relay symbol language
    • Structured Ladder / Function Block Diagram (FBD)
    • Structured Text (ST)
    • Sequential Function Chart (SFC)
  • Processing time: 0.21μs / instruction (contact instruction) – 0.000021 ms
    • 0.52μs / instruction (MOV instruction) – 0.00052 ms
    • 0.42μs / instruction (Extension mode – contact instruction) – 0.00042 ms
    • 1.29μs / instruction (Extension mode – MOV instruction) – 0.00129 ms
  • Power consumption: 25 W
  • Equivalent to: FX3GE40MTDSS
  • Compliant with standard(s): CE (EMC directive), cUL
But skeptics at the Consumers Union, the National Farmers Union and various animal-rights organizations express concerns about increased medical risks for people and cows that have shown up in some rBGH studies. Implementation and impact of policies flashcards 27 Flashcards. If the phone has not rung by 8 in the morning, you're dead.

Additional information

Weight3 lbs
Dimensions5 × 4 × 6 in
