Description

Mitsubishi GT2510-VTBA-K Graphic Operator Terminal GT2510VTBAK

• Extended Product Type: HMI
• Product ID: GT2510-VTBA-K
• Mitsubishi Type Designation: HMI

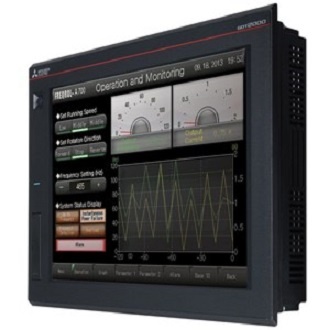

Description of Mitsubishi GT2510-VTBA-K HMI Touchscreen

Mitsubishi GT2510-VTBA-K High-performance mid-range Graphic Operation Programmable Terminal (GOT / PT) touchscreen HMI bundle with GTW3 software. + USB cable – (GOT2000 series GT25) – 10.4″ 640x480pixels (VGA) TFT 65536 (65k) color display with LED backlight / Analog resistive film digitizer – Black frame – 32MBytes (ROM) memory capacity – with 2 x USB type-A (host) connectors + USB mini-B (device) connector + 9-pin D-Sub male connector (RS-232) + 9-pin D-Sub female connector (RS-422/RS-485) – with RS-232 + RS-422 + RS-485 + Ethernet + CC-Link communication capability – Supply voltage 100Vac-240Vac (120Vac / 208Vac / 220Vac / 230Vac) – Flush mounting – IP67 – equivalent to GT2510VTBAK

Specifications of Mitsubishi GT2510-VTBA-K Graphic Operator Terminal

• Primary brand: Mitsubishi Electric
• Main function: HMI / Display unit
• Product series / family name: GOT2000 series
• Sub-range name: GT25
• Functions: High-performance mid-range Graphic Operation Programmable Terminal (GOT / PT) touchscreen HMI
• Supply voltage (AC): 100Vac-240Vac (120Vac / 208Vac / 220Vac / 230Vac)
• Display: 10.4″ 640x480pixels (VGA) TFT 65536 (65k) color display with LED backlight / Analog resistive film digitizer
• Color: Black frame
• Memory capacity: 32MBytes (ROM), 80MBytes (RAM)
• Connection type: 2 x USB type-A (host) connectors, USB mini-B (device) connector, 9-pin D-Sub male connector (RS-232), 9-pin D-Sub female connector (RS-422/RS-485), RJ45 port (Ethernet)
• Communication protocol: RS-232, RS-422, RS-485
• Ethernet: CC-Link
• Mounting mode: Flush
• Degree of protection: IP67
• Ambient air temperature for operation: 0…+55 °C
• Ambient air temperature for storage: -20…+60 °C
• Power consumption: 12 W
• Contents: GT11-50BAT Lithium battery
• Equivalent to: GT2510VTBAK
• Compliant with standard(s): CE, EAC, cUL, UL, KC, IEC 61131-2, JIS B 3502
• Electrical durability: 60 000 hours
• Storage type: SD card slot
• Humidity: 10% to 90% (non-condensing)
