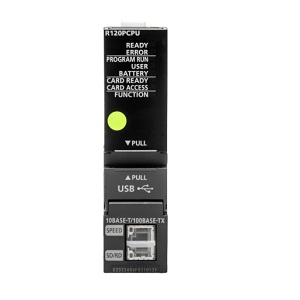

Mitsubishi R120PCPU MELSEC iQ-R Series Process PLC CPU Module

Mitsubishi R120PCPU-C PLC Motion CPU Ethernet Module R120PCPUC

$14,040.00

AVAILABILITY: Generally allow 7-10 days to ship

8 in stock

SKU: R120PCPU-C Category: Tag:
Mitsubishi

Description

Mitsubishi R120PCPU-C PLC Motion CPU Ethernet Module R120PCPUC

  • Extended Product Type: PLC
  • Product ID: R120PCPU-C
  • Mitsubishi Type Designation: PLC

Description of Mitsubishi R120PCPU-C PLC Motion CPU Module

Mitsubishi R120PCPU-C Motion Programmable Logic Controller (PLC) CPU with redundant function + conformal coating – (MELSEC iQ-R Series) – 1200Ksteps / 4800KBytes (Program) memory capacity – connection capacity 4096 x I/O points max – with USB2.0 connector – with Ethernet communication capability – Supply voltage 5Vdc (from dedicated iQ-R series P.S.U.) – Backplane / rack mounting – equivalent to R120PCPUC

Specifications of Mitsubishi R120PCPU-C PLC Motion CPU Ethernet Module

  • Primary brand: Mitsubishi Electric
  • Main function: CPU unit
  • Product series / family name: MELSEC iQ-R Series
  • Functions: Motion Programmable Logic Controller (PLC) CPU
    • Program execution type — Initial
    • Program execution type — Scan
    • Program execution type — fixed scan
    • Program execution type — interrupt
    • Program execution type — standby type
    • Control mode — Stored program cyclic operation
    • I/O control mode — Refresh mode
    • I/O control mode — Direct access I/O is available by specifying direct access I/O (DX;DY)
    • Multiple interrupt
    • Standard PID control
    • Process control
    • Database
    • Data logging
    • Security function
    • Inter-modular synchronization
    • SLMP communication
    • Online module change
  • Design: redundant function
  • Supply voltage (DC): 5Vdc (from dedicated iQ-R series P.S.U.)
  • Memory capacity: 1200Ksteps / 4800KBytes (Program), 3380KBytes (Device/label memory), 40MBytes (Data memory)
  • Connection capacity: 4096 x I/O points max
  • Connection type: USB2.0 connector, RJ45 port (Ethernet)
  • Communication protocol: Ethernet
  • Mounting mode: Backplane / rack
  • Speed: processing; PC MIX value — 419 instructions/μs
  • Programming languages: Ladder diagram (LD) / Relay symbol language, Structured Text (ST), Function Block Diagram (FBD), Sequential Function Chart (SFC), Function block (FB), label programming (system/local/global)
  • Processing time: 0.00098μs / instruction (LD instruction) – 0.00000098 ms, 0.00196μs / instruction (MOV instruction) – 0.00000196 ms, 0.0098μs / E + instruction (floating-point addition) – 0.0098 ms, 0.00196μs / instruction (Structured text IF instruction) – 0.00000196 ms, (Structured text FOR instruction) 1.96ns / 0.00000196 ms
  • Storage type: SD memory card, Extended SRAM cassette
  • Refreshing time: (Constant scan) 0.2-2000ms / 0.0002-2 s
Netsuke evolved over time from being strictly utilitarian into objects of great artistic merit and an expression of extraordinary craftsmanship. Population : This entry gives an estimate from the US Bureau of the Census based on statistics from population censuses, vital statistics registration systems, or sample surveys pertaining to the recent past and on assumptions about future trends. Syntax: tar options archive-file file or directory to be archived Options: -c : Creates Archive -x : Extract the archive -f : creates archive with given filename -t : displays or lists files in archived file -u : archives and adds to an existing archive file -v : Displays Verbose Information -A : Concatenates the archive files -z : zip, tells tar command that create tar file using gzip -j : filter archive tar file using tbzip -W : Verify a archive file -r : update or add file or directory in already existed.

Additional information

Weight2 lbs
Dimensions6 × 3 × 8 in

Brand

Mitsubishi
