What Is a Gauge Pressure Transmitter?

Pressure measurement is at the heart of industrial automation. Whether you’re monitoring pipelines, controlling pumps, or managing process vessels, accurate pressure data is essential for safety, efficiency, and product quality. Among the different pressure measurement devices available, gauge pressure transmitters are by far the most widely used across industries.
If you’ve worked in instrumentation long enough, you’ve likely encountered gauge transmitters in almost every plant—from water treatment facilities to oil and gas systems. They are simple in concept, but understanding how they work—and when to use them—is what separates a good engineer from a great one.
This guide walks through everything you need to know about gauge pressure transmitters, from working principles and components to real-world applications and best practices.
What Is a Gauge Pressure Transmitter?
A gauge pressure transmitter is an instrument that measures pressure relative to the surrounding atmospheric pressure. In practical terms, it tells you how much higher (or lower) the process pressure is compared to the air around you.
In gauge pressure measurement:

• Atmospheric pressure is considered zero reference

• The transmitter outputs pressure above or below that reference

This is why gauge pressure is often expressed as psig (pounds per square inch gauge) rather than absolute pressure.
Gauge pressure transmitters are the most common type used in industrial environments because most processes operate relative to atmospheric conditions.
How Gauge Pressure Differs from Absolute and Differential Pressure
Understanding this distinction is critical in instrumentation.
Gauge Pressure
Measures pressure relative to atmospheric pressure.
Absolute Pressure
Measures pressure relative to a perfect vacuum (0 psi absolute).
Differential Pressure
Measures the difference between two pressure points in a system.
In most industrial applications—such as tanks, pipelines, and pumps—gauge pressure is sufficient and more practical than absolute pressure measurement.
How Gauge Pressure Transmitters Work
At a fundamental level, a gauge pressure transmitter converts physical pressure into an electrical signal that can be used by control systems.
Pressure Sensing Element
The process begins with a pressure-sensing element, typically a diaphragm.
When pressure is applied:

• The diaphragm flexes or deforms

• This deformation is proportional to the applied pressure

• The movement is very small but measurable

The sensing element is often isolated from the process fluid to protect it from harsh environments.
Strain Gauge and Signal Conversion
Most modern transmitters use strain gauge technology.
A strain gauge measures mechanical deformation by detecting changes in electrical resistance. When the diaphragm flexes, the strain gauge bonded to it changes resistance accordingly.
This resistance change is then:

1. Converted into a voltage signal

2. Amplified using internal electronics

3. Converted into a standard output signal

Output Signal (4–20 mA Standard)

The most common output signal for industrial transmitters is 4–20 mA.

• 4 mA represents the minimum pressure

• 20 mA represents the maximum pressure

This signal is transmitted to control systems such as PLCs or SCADA platforms for monitoring and control.
Reference to Atmospheric Pressure
What makes a gauge transmitter unique is its reference to atmospheric pressure.
It typically includes a vent or reference port that allows the sensor to “compare” process pressure with ambient air pressure. This is what enables it to measure gauge pressure rather than absolute pressure.
Key Components of a Gauge Pressure Transmitter
Understanding the internal components helps with troubleshooting and selection.
Sensing Diaphragm
The diaphragm is the primary sensing element that reacts to pressure changes.
It is usually made from: Stainless steel, Hastelloy, and Silicon (in some electronic sensors).
Pressure Port
The pressure port connects the transmitter to the process.
Common connection types include: NPT threads, flange connections, and hygienic fittings for food and pharmaceutical applications.
Signal Conditioning Electronics
This part of the transmitter: Amplifies sensor signals, Filters noise, and Converts signals into standard output.
Modern transmitters may also include digital communication protocols.
Housing and Enclosure
Industrial transmitters are designed for harsh environments.
They often feature: Explosion-proof housings, weatherproof enclosures, and corrosion-resistant materials.
Types of Gauge Pressure Transmitters
Not all gauge transmitters are identical. Different designs are used depending on the application.
Hydraulic Gauge Pressure Transmitters
Used in high-pressure systems such as: hydraulic presses, heavy machinery, and industrial pumps.
These transmitters are built to withstand high pressures and mechanical stress.
Pneumatic Gauge Pressure Transmitters
Used in compressed air systems and pneumatic control systems.
Applications include: air compressors, pneumatic actuators, and process control systems.
Digital (Smart) Gauge Transmitters
Modern transmitters often include digital features such as:

• HART communication

• wireless connectivity

• remote diagnostics

These devices are commonly used in Industrial IoT environments.
General-Purpose Industrial Transmitters
These are the most common type, used in: water treatment plants, HVAC systems, and manufacturing processes.
They are cost-effective and suitable for a wide range of applications.
Advantages of Gauge Pressure Transmitters
Gauge transmitters dominate industrial environments for good reason.
Cost-Effective and Widely Available
Gauge transmitters are generally less expensive than absolute pressure transmitters, making them ideal for large-scale deployment.
Simple and Reliable Operation
Because they reference atmospheric pressure, they are simpler to design and maintain.
High Sensitivity
They are highly sensitive to small pressure changes, making them suitable for precise control applications.
Ideal for Most Industrial Applications
Gauge transmitters are suitable for: pipelines, tanks, pumps, and compressors.
Limitations of Gauge Pressure Transmitters
Despite their advantages, gauge transmitters are not always the right choice.
Dependence on Atmospheric Pressure
Since they reference atmospheric pressure, readings can be affected by: altitude changes, and weather variations
Not Suitable for Vacuum Applications
Gauge transmitters are not ideal for measuring vacuum conditions or applications requiring absolute pressure accuracy.
Potential Calibration Drift
Changes in environmental conditions may require recalibration over time.
Applications of Gauge Pressure Transmitters
Gauge pressure transmitters are used across virtually every industrial sector.

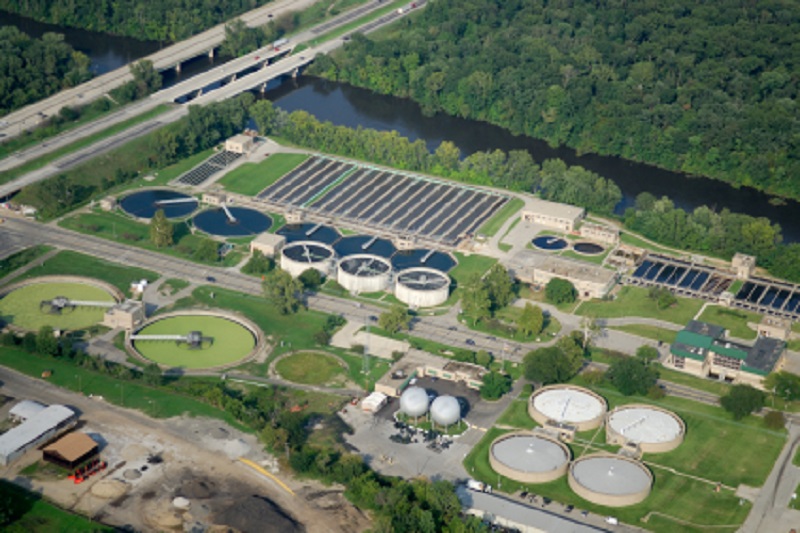

Water and Wastewater Treatment
Used to monitor: pump pressure, tank levels, and pipeline pressure.
Oil and Gas Industry
Applications include: pipeline pressure monitoring, wellhead pressure measurement, and refining processes.
Manufacturing and Process Industries
Used in: chemical processing, food production, and packaging systems.
HVAC Systems
Gauge transmitters monitor air and fluid pressure in heating and cooling systems.
Hydraulic and Pneumatic Systems
They are essential for maintaining system performance and detecting faults.
Installation and Best Practices
Proper installation is critical for accurate measurement.
Mounting Considerations

• Install close to the process point

• Avoid vibration where possible

• Use proper mounting brackets

Electrical Wiring

• Use shielded cables

• Ensure proper grounding

• Avoid electrical interference

Calibration and Maintenance

• Perform regular calibration checks

• Inspect for clogging or damage

• Verify output signals periodically
