In modern industrial automation, accuracy and efficiency are no longer optional—they’re expected. As processes become more complex, traditional single-variable instruments often fall short, especially when measuring dynamic systems like gas or steam flow. That’s where multivariable pressure transmitters come into play.
These advanced instruments are designed to measure multiple process variables simultaneously—typically differential pressure, static pressure, and temperature—and use that data to deliver highly accurate, compensated outputs such as mass flow.
If you’ve worked with flow measurement in oil & gas, power generation, or chemical processing, you already know that relying on a single measurement can introduce significant errors. Multivariable transmitters solve that problem by integrating multiple measurements into one intelligent device.
Understanding Multivariable Pressure Transmitters
What Is a Multivariable Pressure Transmitter?
A multivariable pressure transmitter is a smart field instrument capable of measuring more than one process variable within a single device. The most common configuration includes:

• Differential pressure (DP)

• Static (line) pressure

• Process temperature

These measurements are combined internally to calculate additional variables such as mass flow or compensated volumetric flow.
Unlike traditional setups—where you would need separate transmitters and an external flow computer—a multivariable transmitter integrates everything into one unit.
Why Multivariable Measurement Matters
In real-world processes, especially with gases and steam, flow is not constant. It changes with:

• Pressure variations

• Temperature fluctuations

• Density changes

A standard differential pressure transmitter alone cannot account for these variations. That’s why multivariable transmitters are essential—they provide real-time compensation, ensuring accurate measurements even when process conditions change.
This is particularly important in industries where measurement accuracy directly impacts cost, safety, and compliance.
How Multivariable Pressure Transmitters Work
Core Measurement Principle
At the heart of a multivariable transmitter is the same principle used in differential pressure flow measurement.
Flow is calculated based on the relationship:

• Flow ∝ √(Differential Pressure / Density)

However, density is not constant for gases—it depends on both pressure and temperature. That’s where multivariable transmitters stand out.
They continuously measure:

• Differential pressure (for flow calculation)

• Static pressure (for density correction)

• Temperature (for thermal compensation)

Using an internal microprocessor, the device calculates a fully compensated flow value in real time.
Internal Architecture
A typical multivariable transmitter includes:

• Multiple sensing elements (DP, pressure, temperature)

• Signal conditioning electronics

• A microprocessor for calculations

• Communication interfaces (HART, Modbus, Fieldbus)

These components work together to provide accurate, real-time process data without requiring external computation.
Integrated Flow Computation
One of the most powerful features of these devices is the built-in flow computer.
Instead of sending raw measurements to a PLC or DCS for processing, the transmitter performs calculations internally, including:

• Density compensation

• Flow correction factors

• Gas expansion factors

• Discharge coefficients

This reduces system complexity and improves response time.
Key Measurements in Multivariable Transmitters
Differential Pressure (DP)
Differential pressure is the primary measurement used to determine flow.
It is typically measured across a primary element such as: Orifice plates, Venturi tubes, and Flow nozzles.
The pressure difference between upstream and downstream points is proportional to flow rate.
Static Pressure
Static pressure represents the absolute or gauge pressure within the system.
This measurement is critical for:

• Gas density calculations

• Accurate mass flow determination

• Process monitoring

Temperature Measurement

Temperature plays a major role in fluid behavior, especially for gases.
A temperature sensor (often an RTD) is either integrated or connected to the transmitter. This measurement ensures:

• Accurate density compensation

• Reliable flow calculations

• Improved process stability

Advantages of Multivariable Pressure Transmitters
Improved Measurement Accuracy

By combining multiple measurements, multivariable transmitters eliminate errors caused by:

• Pressure fluctuations

• Temperature changes

• Density variations

This leads to significantly more accurate flow measurement compared to traditional systems.
Reduced Installation Costs
Instead of installing:

• A differential pressure transmitter

• A pressure transmitter

• A temperature transmitter

• A flow computer

You only need one device.
This reduces: Wiring complexity, Installation time, and Maintenance requirements.
Simplified System Architecture
Multivariable transmitters reduce the number of devices in the field, which simplifies:

• Instrumentation design

• Calibration procedures

• Troubleshooting

Fewer components also mean fewer potential points of failure.
Real-Time Process Compensation
Because calculations happen inside the transmitter, the system responds instantly to process changes.
This is particularly important in dynamic environments such as:

• Gas flow systems

• Steam distribution networks

• Energy management systems

Applications of Multivariable Pressure Transmitters
Oil and Gas Industry
In oil and gas operations, accurate flow measurement is critical for:

• Custody transfer

• Pipeline monitoring

• Gas production measurement

Multivariable transmitters ensure accurate readings despite fluctuating pressure and temperature conditions.

Power Generation

Power plants rely on accurate steam flow measurement for:

• Boiler efficiency

• Energy optimization

• Emissions control

Multivariable transmitters provide precise steam flow calculations by compensating for temperature and pressure variations.

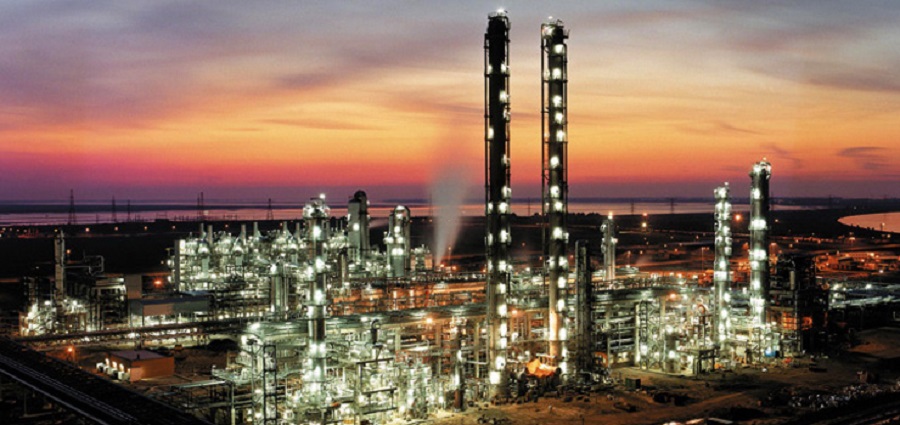

Chemical and Petrochemical Plants
In chemical processing, maintaining accurate flow and pressure is essential for:

• Process control

• Product quality

• Safety compliance

Multivariable transmitters help ensure stable and reliable operation.
Water and Wastewater Systems
These transmitters are also used in flow measurement systems where conditions vary, especially in large-scale industrial water systems.
Multivariable vs Traditional Pressure Transmitters
Traditional Setup
A conventional flow measurement system typically requires:

• Differential pressure transmitter

• Temperature sensor

• Pressure transmitter

• External flow computer

This setup increases system complexity and cost.
Multivariable Solution
A multivariable transmitter combines all these functions into a single device, offering:

• Integrated measurements

• Built-in flow calculations

• Reduced installation and maintenance

The result is a more efficient and reliable measurement system.
Recommended Related Articles:
https://www.automationpioneer.com/news/pressure-transmitters-guide
Pressure Transmitters Explained
https://www.automationpioneer.com/news/flow-measurement-technologies
Flow Measurement Technologies
https://www.automationpioneer.com/news/types-of-industrial-sensors
Types of Industrial Sensors
https://www.automationpioneer.com/news/plc-programming-basics
PLC Programming Basics
https://www.automationpioneer.com/news/industrial-communication-protocols
Industrial Communication Protocols
https://www.automationpioneer.com/news/what-is-scada-system
What Is SCADA System
https://www.automationpioneer.com/news/industrial-iot-guide
Industrial IoT Guide
https://www.automationpioneer.com/news/level-measurement-methods
Level Measurement Methods
Frequently Asked Questions (FAQ)
What is a multivariable pressure transmitter used for?
It is used to measure multiple process variables—typically differential pressure, pressure, and temperature—and calculate accurate flow rates, especially in gas and steam applications.
How is a multivariable transmitter different from a differential pressure transmitter?
A differential pressure transmitter measures only pressure difference, while a multivariable transmitter measures multiple variables and performs real-time compensation for accurate flow calculation.
Why are multivariable transmitters important for gas flow measurement?
Gas density changes with pressure and temperature. Multivariable transmitters compensate for these changes, ensuring accurate flow measurement under varying conditions.
Can multivariable transmitters replace flow computers?
Yes. Most modern multivariable transmitters include built-in flow computation, eliminating the need for external flow computers in many applications.
What industries use multivariable pressure transmitters?
They are widely used in oil and gas, power generation, chemical processing, water treatment, and industrial manufacturing.
Do multivariable transmitters reduce installation costs?
Yes. By combining multiple measurement functions into one device, they reduce the number of instruments, wiring, and overall installation complexity.
