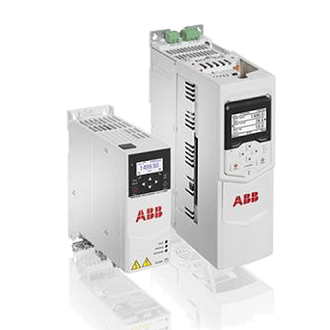

ABB ACS480 General Purpose Drives

When it comes to variable frequency drives (VFDs), engineers don’t just look for performance—they look for reliability, simplicity, and ease of integration. That’s exactly where the ABB ACS480 General Purpose Drives stand out.
The ACS480 series is designed for light industrial applications where you need dependable motor control without unnecessary complexity. It’s built for engineers who want a drive that works out of the box, integrates easily into existing systems, and delivers consistent performance across a wide range of applications.
In this guide, we’ll break down what the ACS480 is, how it works, where it fits, and why it has become a go-to choice in modern automation environments.
What Are ABB ACS480 General Purpose Drives?
The ACS480 is a low-voltage AC drive designed for controlling motor speed in standard industrial applications such as pumps, fans, compressors, and conveyors.
At its core, this drive focuses on simplicity, reliability, and energy efficiency. It integrates essential features into a compact package, allowing users to deploy it quickly without dealing with overly complex configurations.
The ACS480 is part of ABB’s “all-compatible drives” portfolio, meaning it shares tools, interfaces, and operational logic with other ABB drives—reducing the learning curve for engineers working across multiple systems. Key highlights include:

• Power range typically from 0.75 kW to 22 kW
• Voltage range of 380–480 V
• Compact, cabinet-optimized design
• Built-in functionality for common applications
• Connectivity to major industrial networks

This combination makes it particularly attractive for OEMs, system integrators, and maintenance teams.
Key Features of ABB ACS480 Drives
Built-In Simplicity and Ease of Use
One of the defining characteristics of the ACS480 is its user-friendly design. Unlike many industrial drives that require extensive setup, the ACS480 is designed to get up and running quickly. It comes with:

• Pre-configured application macros
• Assistant control panel with guided setup
• Built-in help functions for troubleshooting
• Multi-language interface

This significantly reduces commissioning time and minimizes the need for specialized training. From an engineering standpoint, this is a practical advantage—especially in facilities where downtime is costly.
Compact and Cabinet-Optimized Design
The ACS480 is designed specifically for control panel installation.
Its compact footprint allows it to fit easily into standard enclosures without requiring significant redesign of control cabinets. Key physical characteristics include:

• IP20 protection rating
• Space-saving design
• Optimized airflow for cabinet installations

This makes it ideal for applications where panel space is limited, such as retrofit projects or compact machinery.
Energy Efficiency and Motor Optimization
Energy efficiency is no longer optional in industrial environments—it’s a requirement. The ACS480 includes built-in features designed to optimize energy consumption:

• Energy optimizer function
• Energy consumption calculator
• Support for high-efficiency motors
• Intelligent control algorithms

These features help reduce operating costs while improving process performance. In applications like pumps and fans, where energy consumption is continuous, the savings can be substantial.
Advanced Motor Control Capabilities
Despite being a “general purpose” drive, the ACS480 offers robust motor control features. It supports:

• Scalar control for simple applications
• Vector control for improved performance
• Multiple motor types (induction, permanent magnet, SynRM)

It also includes dual PID controllers, enabling precise control of variables such as pressure, flow, or temperature—without requiring external controllers. This is particularly valuable in process industries where maintaining stable conditions is critical.
Built-In Safety and Protection Features
Industrial environments demand reliability and safety. The ACS480 includes several built-in protection mechanisms:

• Safe Torque Off (STO) functionality
• Earth fault protection
• Overload and thermal protection
• Coated circuit boards for harsh environments

These features ensure the drive can operate reliably even in challenging industrial conditions.
How ABB ACS480 Drives Work
To understand the ACS480, it helps to look at how a variable frequency drive operates. At a basic level, the drive controls motor speed by adjusting the frequency and voltage supplied to the motor.
Step-by-Step Operation

1. AC power is supplied to the drive
2. The drive converts AC to DC (rectification)
3. The DC is processed and filtered
4. The drive converts DC back to variable-frequency AC (inversion)
5. The motor receives controlled power and operates at the desired speed

The ACS480 manages this process continuously, adjusting motor performance based on system requirements.
Integrated Control Logic

What sets the ACS480 apart is its built-in intelligence. Instead of relying entirely on external PLCs, the drive includes:

• Embedded control logic
• PID controllers
• Application-specific macros

This allows it to handle many control tasks independently, reducing system complexity. For example, in a pump system, the drive can automatically adjust speed based on pressure feedback—without requiring additional controllers.
Communication and Connectivity
Modern industrial systems require seamless communication between devices. The ACS480 supports integration with common industrial protocols, including:

• Modbus RTU (standard)
• Fieldbus expansion options
• Compatibility with industrial automation networks

This ensures that the drive can easily integrate into existing PLC or SCADA systems.
Applications of ABB ACS480 Drives
The ACS480 is designed for general-purpose industrial applications, meaning it can be used across a wide range of industries.
Pumps and Water Systems
One of the most common applications is in water and wastewater systems. Typical use cases include:

• Booster pump systems
• Water treatment plants
• Irrigation systems

The built-in PID control allows precise pressure and flow regulation, improving efficiency and reducing energy consumption.
Fans and HVAC Systems
The ACS480 is widely used in HVAC and ventilation systems. Applications include:

• Industrial ventilation
• Air handling units
• Cooling systems

By adjusting motor speed based on demand, the drive significantly reduces energy usage compared to fixed-speed systems.
Conveyors and Material Handling
In logistics and manufacturing, the ACS480 is used to control conveyor systems. Benefits include:

• Smooth acceleration and deceleration
• Reduced mechanical stress
• Improved process control

This makes it ideal for warehouses, packaging lines, and production facilities.
Compressors and General Machinery
The ACS480 is also used in:

• Air compressors
• Basic machinery control
• Food and beverage processing
• Light industrial manufacturing

Its versatility makes it a strong choice for OEM equipment builders.
Advantages of ABB ACS480 Drives
Ease of Installation and Commissioning
The ACS480 is designed to be installed and configured quickly. With built-in tools and guided setup, engineers can reduce commissioning time significantly.
Reliability in Industrial Environments
Features like coated boards and high-temperature operation ensure reliable performance even in demanding conditions.
Cost-Effective Solution
Compared to more advanced drives, the ACS480 offers a cost-effective solution for standard applications—without sacrificing essential functionality.
Scalability and Compatibility
Because it shares tools and interfaces with other ABB drives, the ACS480 allows easy scalability across different systems. This is particularly useful for facilities planning future upgrades.
Limitations of ABB ACS480 Drives
No product is perfect, and the ACS480 is no exception.
Limited Advanced Features
The ACS480 is designed for simplicity, so it may not be suitable for:

• High-performance motion control
• Complex multi-axis systems
• Heavy industrial applications

Power Range Constraints

With a maximum range typically around 22 kW, it is best suited for light to medium-duty applications.
Basic vs Advanced Drives
For more complex applications, users may need to consider higher-end drives such as ABB’s ACS580 or ACS880 series.
Recommended Related Articles:
https://www.automationpioneer.com/plc-programming-basics
PLC Programming Basics
https://www.automationpioneer.com/what-is-scada-system
What Is SCADA System
https://www.automationpioneer.com/plc-vs-dcs
PLC vs DCS Explained
https://www.automationpioneer.com/types-of-industrial-sensors
Types of Industrial Sensors
https://www.automationpioneer.com/industrial-communication-protocols
Industrial PLC Communication Protocols Guide
https://www.automationpioneer.com/pressure-transmitters-guide
Pressure Transmitter Guide
https://www.automationpioneer.com/industrial-iot-guide
Industrial IoT Guide
Frequently Asked Questions (FAQ)
What is the ABB ACS480 drive used for?
The ACS480 is used for controlling motor speed in general industrial applications such as pumps, fans, conveyors, and compressors.
What is the power range of the ACS480?
The ACS480 typically operates within a power range of 0.75 kW to 22 kW, making it suitable for light to medium industrial applications.
Does the ACS480 support communication with PLC systems?
Yes, the ACS480 supports communication protocols such as Modbus RTU and can integrate with PLC and SCADA systems.
What makes the ACS480 different from other ABB drives?
The ACS480 is designed for simplicity and ease of use, focusing on essential features for general-purpose applications, whereas other ABB drives offer more advanced functionality for complex systems.
Is the ACS480 suitable for energy-saving applications?
Yes, the ACS480 includes built-in energy optimization features that help reduce energy consumption, especially in pump and fan applications.
Can the ACS480 control multiple motors?
Yes, certain features allow the drive to control multiple motors in applications such as pump and fan systems, improving operational efficiency.
